CommandQuad™ PLUS — Set the Start-up Gear

LX266680-UN-16DEC15

LX266681-UN-16DEC15

LX266787-UN-01FEB16

LX1056690-UN-04JUL12

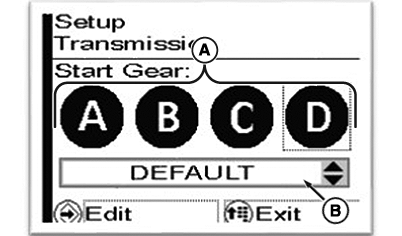

A - Select a Gear

B - Set the Start-Up Gear

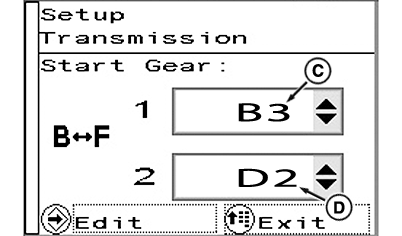

C - Set/Select Start-Up Gear “1”

D - Set/Select Start-Up Gear “2”

1 - Confirm Button

2 - Up Arrow Button

3 - Down Arrow Button

4 - Menu Button

The start-up gear determines how far the transmission automatically shifts down through the gears when stopping.

If a start-up gear is activated, the transmission automatically shifts to the selected start-up gear after stopping.

NOTE: When stopping, the transmission only shifts to the start-up gear if the gear currently engaged is higher than the selected start-up gear.

These settings are saved and automatically re-activated when the tractor starts again.

NOTE: On the 20/20 transmission, only ranges A, B, C and BE are available.

For ranges A to D:

• For these ranges, one single start-up gear can be set.

For range BF:

• In this range, two start-up gears can be set.

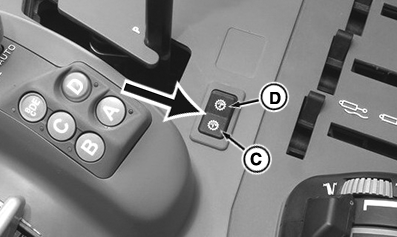

• It is possible to toggle between the start-up gears by using the switch (see arrow). While driving, this may mean changing up to the displayed start-up gear, which can cause travel speed to increase.

To set the start-up gear, press menu button (4) repeatedly until the page shown appears.

With arrow buttons (2) or (3), select the check box (A) and press the confirm button (1).

Use the arrow buttons to select the desired setting.

Save selection using the confirm button.

To exit, press menu button (4).
