CommandQuad™ PLUS — Towing the Tractor

LX266788-UN-01FEB16

LX266663-UN-14DEC15

LX266791-UN-01FEB16

First situation: Power transmission problems, but engine is running.

1. Attach tractor to towing vehicle.
2. Start the engine.

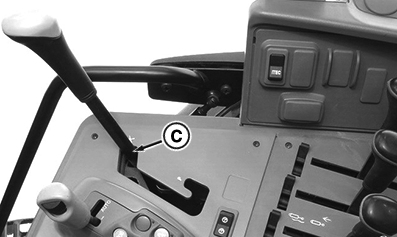

3. Move the park lock lever to position (C).
4. Select range BF, move shift lever (A) to manual mode (1) and engage gear C4.
5. Move reverse drive lever (B) to neutral position.
6. Switch front-wheel drive OFF.
7. Tow tractor at a maximum speed of 10 km/h (6 mph).

Second situation: Engine is defective or cannot be started.

LX1049905-UN-17FEB11

LX266663-UN-14DEC15

LX266791-UN-01FEB16

CAUTION: Without hydraulic pressure, the steering system can only operate in emergency mode. Steering is stiff and slow. The driver of the towing vehicle must bear this in mind and remember to slow down drastically before changing direction.

1. Attach tractor to towing vehicle.
2. Switch off the ignition, and place come-home connector in come-home position (see Come-Home Mode).
3. Turn ignition ON.
4. Move the park lock lever to position (C).
5. If the tractor is towed more than one kilometer (0.6 miles), the universal joint shaft must be removed. To do this, remove screws (A).

   IMPORTANT: If the u.j. shaft is not removed, the tires will wear out faster and there will be an adverse effect on steering characteristics.

6. When towing, select a speed that allows the tractor to be steered safely. NEVER tow faster than 10 km/h (6 mph).
