Three-Piece Front Axle (Version 2) — Tread Widths for Front Wheels with Rims for 16 Positions - 6145M

LX1057503-UN-13MAY15

Three-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Three-Piece Front Axle (Version 2) — Overview of Axle Category and Axle Type”
2. “Three-Piece Front Axle (Version 2) — Adjust the Fixed Fenders and Steering Stop”
3. “Preventing Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

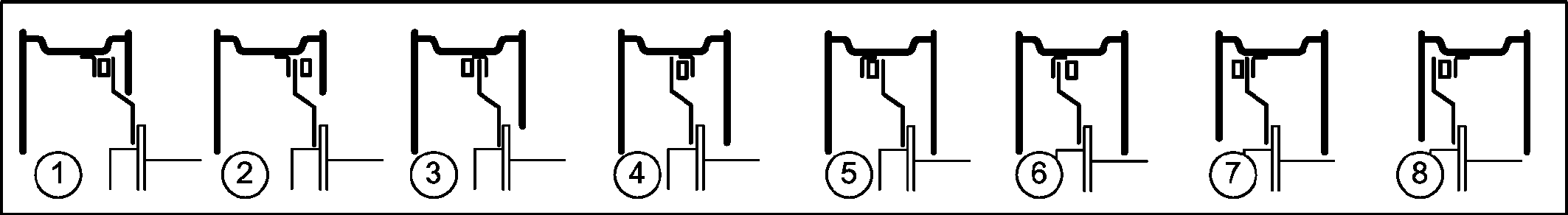

LX1053419-UN-16MAR12

Tread Widths for Front Wheels with Rims for 16 Positions / Positions 1 to 8

		Tread width on delivery	Tread widths (front wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
14.9R24	mm	1814	2230*	—**	—**	2114*	2046	—**	—**	1930
	in.	71.4	87.8*			83.2*	80.6			76.0
16.9R24	mm	1812	2228*	—**	—**	2112*	2044*	—**	—**	1928
	in.	71.3	87.7*			83.1*	80.5*			75.9
320/85R34 -R1	mm	1780	2280*	2250*	2210*	2180*	2076	2046	2006	1976
	in.	70.1	89.8*	88.6*	87.0*	85.8*	81.7	80.6	79.0	77.8
380/85R24	mm	1834	2250*	—**	—**	2134	2066	—**	—**	1950
	in.	72.2	88.6*			84.0	81.3			76.8
420/70R24	mm	1814	2230*	—**	—**	2114*	2046	—**	—**	1930
	in.	71.4	87.8*			83.2*	80.6			76.0
420/85R24	mm	1834	2250*	—**	—**	2134*	2066	—**	—**	1950
	in.	72.2	88.6*			84.0*	81.3			76.8
480/65R24	mm	1814	2230*	—**	—**	2114*	2046*	—**	—**	1930
	in.	71.4	87.8*			83.2*	80.6*			76.0
480/70R24	mm	1812	2228*	—**	—**	2112*	2044*	—**	—**	1928
	in.	71.3	87.7*			83.1*	80.5*			75.9
540/65R24	mm	1812	2228*	—**	—**	2112*	2044*	—**	—**	1928
	in.	71.3	87.7*			83.1*	80.5*			75.9
270/80R36	mm	1812	2282*	2252*	2212	2182	2078	2048	2008	1978
	in.	71.3	89.8*	88.7*	87.1	85.9	81.8	80.6	79.1	77.9
270/95R32	mm	1812	2282*	2252*	2212	2182	2078	2048	2008	1978
	in.	71.3	89.8*	88.7*	87.1	85.9	81.8	80.6	79.1	77.9
270/95R38	mm	1810	2280*	2250*	2210	2180	2076	2046	2006	1976
	in.	71.3	89.8*	88.6*	87.0	85.8	81.7	80.6	79.0	77.8
380/85R30	mm	1810	2274*	2244*	2210*	2180*	2070	2040	2006	1976
	in.	71.3	89.5*	88.3*	87.0*	85.8*	81.5	80.3	79.0	77.8
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations or other applicable regulations must be observed. ** Installation in this position is not allowed.

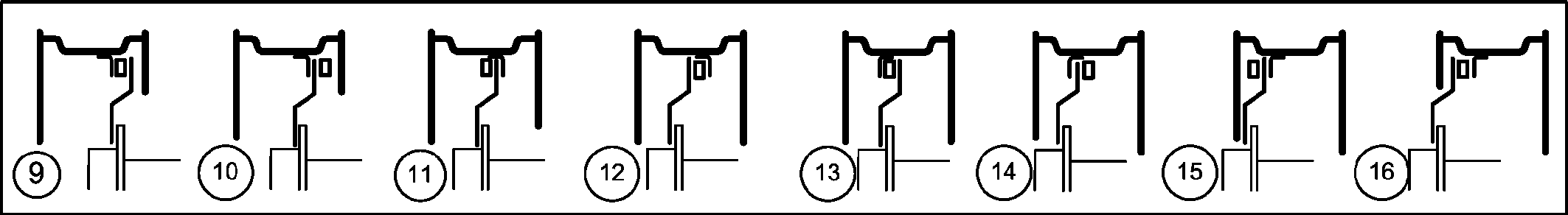

LX1053420-UN-16MAR12

Tread Widths for Front Wheels with Rims for 16 Positions / Positions 9 to 16

		Tread width on delivery	Tread widths (front wheels) Arrangement of rim and wheel dish
Tires:			9	10	11	12	13	14	15	16
14.9R24	mm	1814	1910	—**	—**	1814	1746	—**	—**	1630
	in.	71.4	75.2			71.4	68.7			64.2
16.9R24	mm	1812	1908	—**	—**	1812	1744	—**	—**	1628
	in.	71.3	75.1			71.3	68.7			64.1
320/85R34 -R1	mm	1780	1880	1850	1810	1780	1676	1646	1606	1576
	in.	70.1	74.0	72.8	71.3	70.1	66.0	64.8	63.2	62.0
380/85R24	mm	1834	1930	—**	—**	1834	1766	—**	—**	1650
	in.	72.2	76.0			72.2	69.5			65.0
420/70R24	mm	1814	1910	—**	—**	1814	1746	—**	—**	1630
	in.	71.4	75.2			71.4	68.7			64.2
420/85R24	mm	1834	1930	—**	—**	1834	1766	—**	—**	1650
	in.	72.2	76.0			72.2	69.5			65.0
480/65R24	mm	1814	1910	—**	—**	1814	1746	—**	—**	1630
	in.	71.4	75.2			71.4	68.7			64.2
480/70R24	mm	1812	1908	—**	—**	1812	1744	—**	—**	1628
	in.	71.3	75.1			71.3	68.7			64.1
540/65R24	mm	1812	1908	—**	—**	1812	1744	—**	—**	1628
	in.	71.3	75.1			71.3	68.7			64.1
270/80R36	mm	1812	1882	1852	1812	1782	1678	1648	1608	1578
	in.	71.3	74.1	72.9	71.3	70.2	66.1	64.9	63.3	62.1
270/95R32	mm	1812	1882	1852	1812	1782	1678	1648	1608	1578
	in.	71.3	74.1	72.9	71.3	70.2	66.1	64.9	63.3	62.1
270/95R38	mm	1810	1880	1850	1810	1780	1676	1646	1606	1576
	in.	71.3	74.0	72.8	71.3	70.1	66.0	64.8	63.2	62.0
380/85R30	mm	1810	1874	1844	1810	1780	1670	1640	1606	1576
	in.	71.3	73.8	72.6	71.3	70.1	65.7	64.6	63.2	62.0
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations or other applicable regulations must be observed. ** Installation in this position is not allowed.
