Three-Piece Front Axle (Version 2) — Tread Widths for Front Wheels with Rims for 8 Positions - 6135M

LX1057503-UN-13MAY15

Three-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 8 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Three-Piece Front Axle (Version 2) — Overview of Axle Category and Axle Type”
2. “Three-Piece Front Axle (Version 2) — Adjust the Fixed Fenders and Steering Stop”
3. “Preventing Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

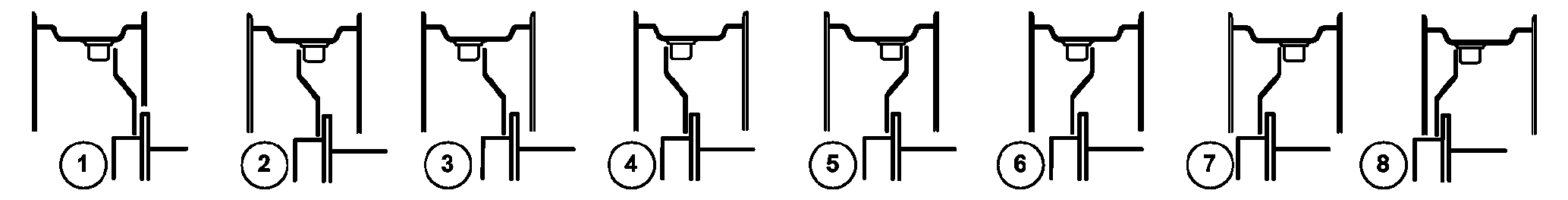

LX1056921-UN-21AUG13

		Tread width on delivery	Tread widths (front wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
12.4R28	mm	1824	2224*	2140	2120	2036	1824	1740	1720	1636
	in.	71.8	87.6*	84.3	83.5	80.2	71.8	68.5	67.7	64.4
13.6R28	mm	1814	2318*	2214*	2042	1938	1918	1814	1642	1538
	in.	71.4	91.3*	87.2*	80.4	76.3	75.5	71.4	64.6	60.6
14.9R28	mm	1814	2318*	2214*	2042	1938	1918	1814	1642	1538
	in.	71.4	91.3*	87.2*	80.4	76.3	75.5	71.4	64.6	60.6
16.9R28	mm	1812	2316*	2212*	2040	1936	1916	1812	1640	1536**
	in.	71.3	91.2*	87.1*	80.3	76.2	75.4	71.3	64.6	60.5**
320/85R28	mm	1836	2340*	2236*	2064	1960	1940	1836	1664	1560
	in.	72.3	92.1*	88.0*	81.3	77.2	76.4	72.3	65.5	61.4
340/85R28	mm	1836	2340*	2236*	2064	1960	1940	1836	1664	1560
	in.	72.3	92.1*	88.0*	81.3	77.2	76.4	72.3	65.5	61.4
380/70R28	mm	1814	2318*	2214*	2042	1938	1918	1814	1642	1538
	in.	71.4	91.3*	87.2*	80.4	76.3	75.5	71.4	64.6	60.6
380/85R28	mm	1836	2340*	2236*	2064	1960	1940	1836	1664	1560
	in.	72.3	92.1*	88.0*	81.3	77.2	76.4	72.3	65.5	61.4
420/70R28	mm	1814	2318*	2214*	2042	1938	1918	1814	1642	1538
	in.	71.4	91.3*	87.2*	80.4	76.3	75.5	71.4	64.6	60.6
420/85R28	mm	1836	2340*	2236*	2064	1960	1940	1836	1664	1560
	in.	72.3	92.1*	88.0*	81.3	77.2	76.4	72.3	65.5	61.4
480/65R28	mm	1814	2318*	2214*	2042*	1938	1918	1814	1642	1538**
	in.	71.4	91.3*	87.2*	80.4*	76.3	75.5	71.4	64.6	60.6**
480/70R28	mm	1812	2316*	2212*	2040*	1936	1916	1812	1640	1536**
	in.	71.3	91.2*	87.1*	80.3*	76.2	75.4	71.3	64.6	60.5**
540/65R28	mm	1812	2316*	2212*	2040*	1936*	1916	1812	1640**	1536**
	in.	71.3	91.2*	87.1*	80.3*	76.2*	75.4	71.3	64.6**	60.5**
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations or other applicable regulations must be observed. ** Tread width and adjustment of the steering stop is possible only with steering stop AL225331. See also “Three-Piece Front Axle (Version 2) — Adjust the Pivoting Fenders and Steering Stop” for the relevant front axle.
