Key Switch

IMPORTANT: Before leaving the tractor, confirm that the key switch is in the STOP position (B). If the key switch is not in the STOP position, the battery may discharge.

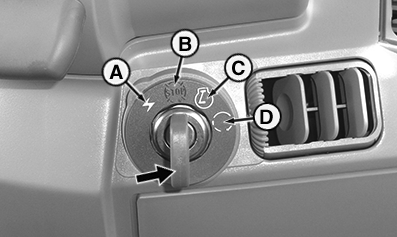

LX267010-UN-13DEC16

Key Switch, Positions

Position		Consumer	Supplier
A	ACC	Operator's Seat 12-volt Power Outlet Socket / Cigarette Lighter Radio1	Battery
B	STOP	On-board circuit OFF Engine OFF	—
C	IGN	On-board circuit ON Engine OFF	Battery
	RUN	On-board circuit ON Engine is running Battery is charging	Alternator
D	START	On-board circuit ON Consumers of ACC position OFF Starting motor is activated and engine is started	Battery
