Attach the Pick-Up Weight to the Front Hitch

LX1049891-UN-11FEB11

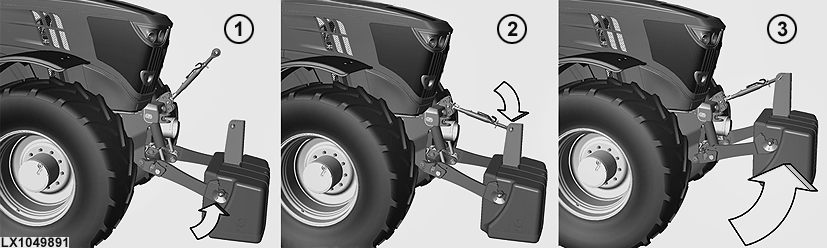

To prevent the pick-up weight from swinging dangerously when it is raised, follow the installation procedure outlined below.

1. Engage the pick-up weight in the draft links but do NOT raise the weight at this stage.

2. Adjust the center link and engage it in the pick-up weight.

3. Raise the pick-up weight as high as it will go.

4. For removing the pick-up weight, reverse the attaching procedure.

CAUTION: Do not attempt to raise the pick-up weight unless it is already connected to the center link.

CAUTION: Do not use front-end ballast unless the rear of the tractor has an appropriate counterweight.

CAUTION: If no implement is installed on the rear end, install the pick-up weight on the rear hitch before driving to the field.

CAUTION: Incorrect ballasting has a negative effect on handling characteristics.

IMPORTANT: Comply with permissible axle loads and tire and wheel rim bearing capacities.
