Cab Classification According to EN 15695-1 (for Application of Crop Protection Chemicals and Liquid Fertilizer)

LX245286-UN-01JUN15

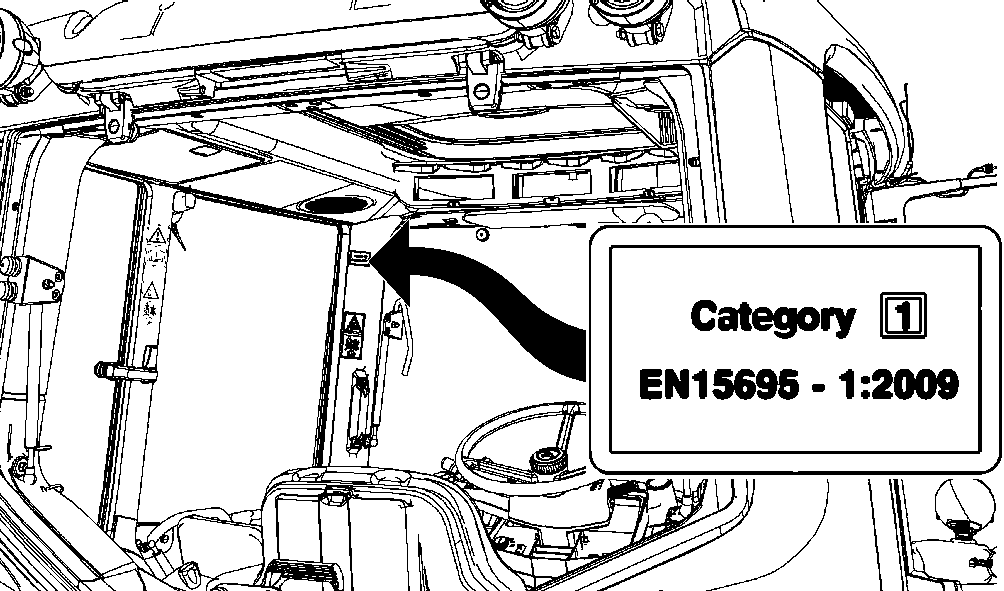

The label shown serves as an example, and might not correspond to the actual category of the mounted cab

A label inside the cab specifies the corresponding cab category. Please note the number behind the word "Category" (number 1 in the opposite illustration is an example and therefore not relevant).

Replace label if missing or damaged. Contact an authorized dealer for this.

Category 1
	Cab provides no protection against hazardous substances.
Category 2
	Cab protects against solid airborne particles such as dust, but not against aerosols and vapors.
Category 3
	Cab protects against dust and aerosols (liquid airborne particles, e.g., spray) but not against vapors.
Category 4
	Cab protects against dust, aerosols and vapors.

CAUTION: Before working in environment containing hazardous substances, i.e. when using pesticides, check whether cab offers sufficient protection. Product data sheets of crop protection chemicals and liquid fertilizers inform about hazards to be expected. By comparing with the category description you can decide whether the cab used provides sufficient protection. If the cab category is not suitable for the intended application, the instructions in the product data sheets require wearing suitable personal protective equipment.

CAUTION: Before using cabs of Category 3 and 4¹ in an environment charged with hazardous substances, verify whether the integrated filters are tested to EN 15695-2:2009, and are approved for the sprayed substance by the manufacturer of the crop protection chemicals.

CAUTION: The cab air filters must be serviced as specified. See Section "Lubrication and Periodic Service" or "Service - As Required" and "Service - Once Every Year" in this Operator's Manual.

Refer to product data sheets and product identification of crop protection chemicals. These provide important information on how to avert dangers.

The following requirements must be met to offer best protection:

1. All seals for doors, windows and roof must be in good condition.
2. Keep doors, windows and roof closed.
3. Cable feedthroughs into the cab must be leak-tight.
4. During work, turn on fan.
5. Cab air filters must be in good condition.
