Install Monitor

Attaching monitors and control instruments

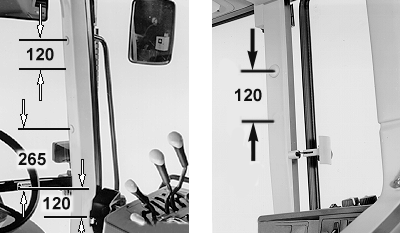

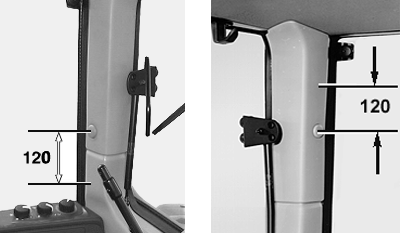

Monitors and controls can be attached in the cab at various attaching points:


LX315061-UN-04DEC17


LX315062-UN-04DEC17

• At the front, right beam.
• At the middle beams.
• At the rear beams.

NOTE: Hole spacing of the attaching points: 120 mm (4.72 in.) - thread M10.

Take off the relevant trim. The positions where holes may be drilled are already marked on the inside.

IMPORTANT: Before putting the monitor or control instrument into operation, note the following:

• Read the operator's manual of the manufacturer.
• Observe all safety instructions contained in the manual or attached to the device.
