Roof Hatch

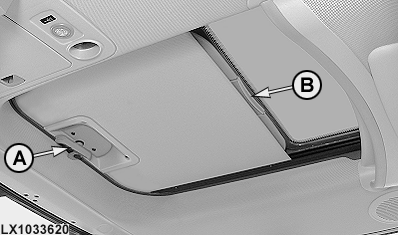

1. The roof hatch can be opened and closed with lever (A).


   LX1033620-UN-14APR04

   A - Latch Control Levers

   B - Cover

---




2. If the skylight is fitted with a glass insert, the cover (B) can prevent unwanted solar radiation.

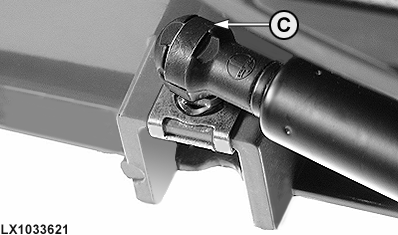

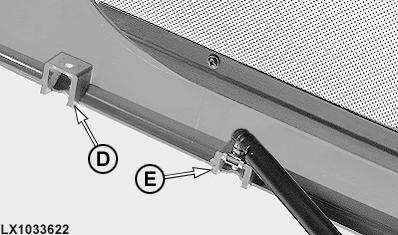

3. The roof hatch can be set to a small or large opening angle. To change, remove the retaining clip (C), pull the gas spring off the bracket, and remove the bracket. Install the bracket in the desired position (D) or (E), press open the gas spring and replace the retaining clip.


   LX1033621-UN-14APR04


   LX1033622-UN-14APR04

   C - Retaining Clip

   D - Small Opening Angle

   E - Large Opening Angle

---
