Adjustable Front Axle - Check Toe-in

1. Make sure wheels are in the straight forward position by driving tractor in a straight line for approx. 15 m (50 ft).

   CAUTION: Keep the engine switched off while making the measurements, and secure the tractor so that it cannot roll away.

2.

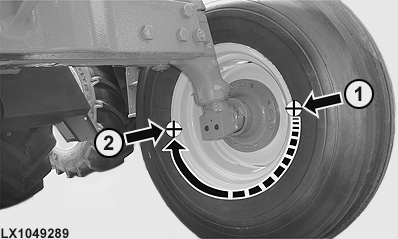

   LX1049289-UN-09JUN10

   Adjustable Front Axle Type A Shown

   First, put marks (+) at axle height on the front (1) of each of the two front wheels.

---




3.

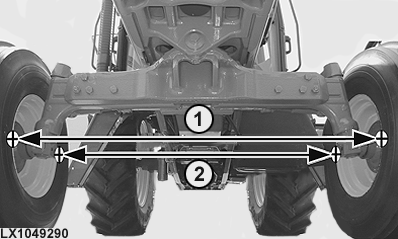

   LX1049290-UN-09JUN10

   Adjustable Front Axle Type A Shown

   At the front (1), measure distance from the edge of the right rim to the edge of the left rim, and make a note of this measurement.

---




4. Roll the tractor forward by half the circumference of the front wheel, bringing the (+) mark to the rear (2).

5. At the rear, measure distance (2) from the right rim flange to the left rim flange, and make a note of the measurement.

Dimension at the front (1) must be 3 to 9 mm (0.12 to 0.35 in.) less than dimension at the rear (2).
