Open Service Doors

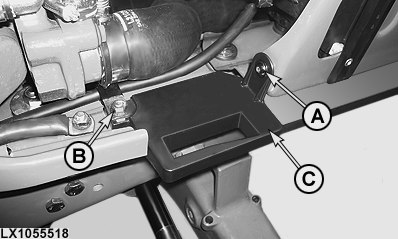

  1. Remove screw (A) and nut (B). Remove shield (C).

    LX1055518
    LX1055518-UN-28FEB12

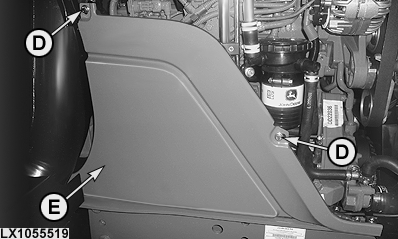

  2. remove screws (D). Remove service door (E).

    LX1055519
    LX1055519-UN-28FEB12


OULXA64,000291E-19-20171201
