Routing Cables through the Window

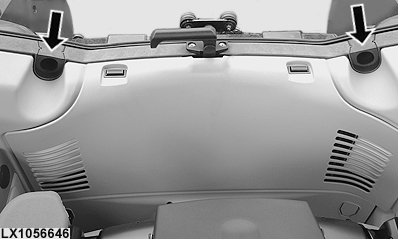

The rear window of the cab is provided with two openings allowing the cables to be routed. Open the window and take out the rubber plugs. Separate the rubber plugs at the incisions provided to allow the cables to be routed through the plugs. Connect the connectors, insert the rubber plugs and close the window.

LX1056646-UN-19JUL12
