Adjustable Front Axle Typ B - Adjusting the Wheel Treads

1. IMPORTANT: Do not place jack under engine oil pan.

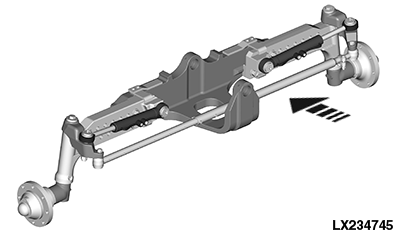

   LX234745-UN-28AUG15

   Adjustable Front Axle Type B

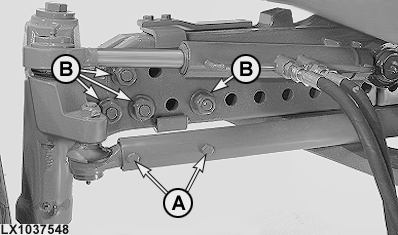

   LX1037548-UN-04NOV05

   A - Tie Rod Bolts

   B - Axle bolts

   Lift up the front side of the tractor.

---




2. Remove bolts (A) from tie rod and bolts (B) from one side of axle.

3. Slide axle knee to desired position.

4. Install axle bolts (B). Tighten to specification.

   Item	Measurement	Specification
   Axle Bolts	Torque	600 N·m (445 lb-ft)

5. NOTE: Both sides are usually adjusted to same setting.

   Repeat steps 2-4 on opposite side of tractor.

6. Adjust tie rod same amount as axle.

7. Install bolts (A) in tie rod and tighten to specification.

   Item	Measurement	Specification
   Tie Rod Bolts	Torque	61 N•m (45 lb-ft)

8. Check toe-in and adjust as required.

   NOTE: Alternate tread settings may require additional hose length to be pulled from frame rails. Excess hose length should be pulled back into frame area when adjusting tread settings inward.
