Adjustable Front Axle Type A - Tread Widths with Axle Extensions

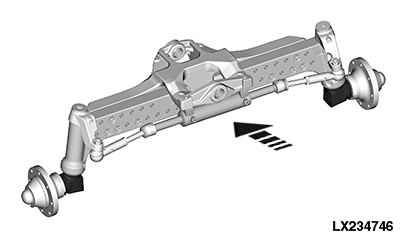

LX234746-UN-28AUG15

Adjustable Front Axle Type A

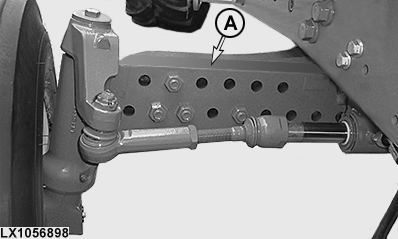

Adjustable front axle (A) has seven tread settings with extensions.

LX1056898-UN-04JUN13

Adjustable Front Axle with Extensions

IMPORTANT: For front loader work, select a tread width between 1700 - 1860 mm (66.9 - 73.2 in.).

If wheels are removed to adjust tread, tighten wheel bolts to 310 Nm (230 lb-ft).

After adjusting tread, tighten axle bolts to 400 Nm (300 lb.-ft.).

IMPORTANT: After a tread adjustment, check the torque of these bolts after 4 and 8 hours of operation, and frequently during the next 100 hours of operation.

Tires	Position of tire valve	Axle hole position
		1	2	3	4	5	6	7
10.00-16	Outside	1960 mm (77.0 in.)	2060 mm (81.0 in.)	2160 mm (85.0 in.)	2265 mm (89.0 in.)	2365 mm (93.0 in.)	2465 mm (97.0 in.)	2570 mm (101.0 in.)
11.00-16	Outside	1960 mm (77.0 in.)	2060 mm (81.0 in.)	2160 mm (85.0 in.)	2265 mm (89.0 in.)	2365 mm (93.0 in.)	2465 mm (97.0 in.)	2570 mm (101.0 in.)
11L-15	Outside	2041 mm (80.4 in.)	2141 mm (84.3 in.)	2241 mm (88.2 in.)	2346 mm (92.4 in.)	2446 mm (96.3 in.)	2546 mm (100.2 in.)	2646 mm (104.2 in.)

NOTE: On public roads, comply with local traffic regulations.
