Adjustable Front Axle Type A - Lubricate the Grease Fittings

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

IMPORTANT: Thoroughly clean all grease fittings prior to lubricating. Replace damaged grease fittings immediately.

Lubricate the grease fittings on the front axle using John Deere multi-purpose grease.

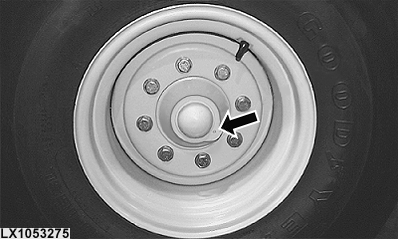

LX1053275-UN-15SEP11

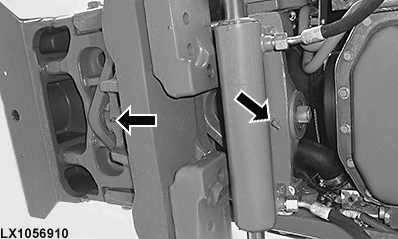

LX1056910-UN-05JUN13

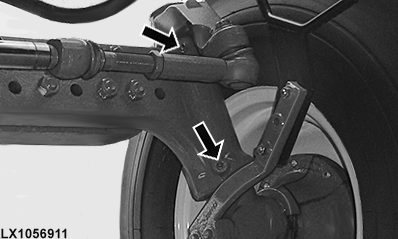

LX1056911-UN-05JUN13
