Mechanical Selective Control Valves (SCV) - Controls

IMPORTANT: The multi-function lever and the SCVs must be locked when driving on public roads.

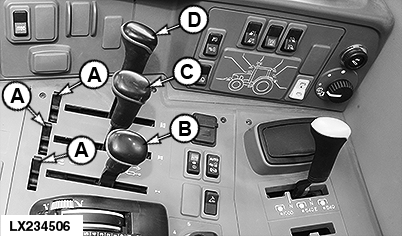

Control lever for SCV I to III

LX234506-UN-06MAR15

A - Lever for Locking the Control Levers

B - Control Lever, SCV I

C - Control Lever, SCV II

D - Control Lever, SCV III

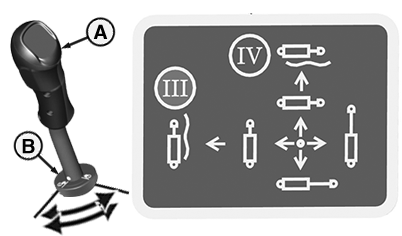

Multi-function lever for operating the SCV III and IV (if equipped)

LX364346-UN-26MAR19

A - Multi-Function Lever, SCV III and IV

B - Locking Ring (Transport Lock)

For more information, see Section "Additional Equipment - Hydraulic System".
