Wiper and Washer System

LX1056653-UN-28JUN12

LX1056654-UN-28JUN12

LX234510-UN-10FEB15

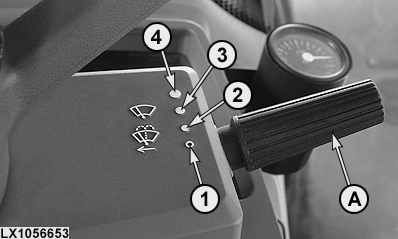

A - Windshield Wiper Switch

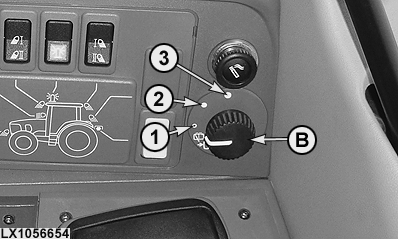

B - Rear Window Wiper Switch

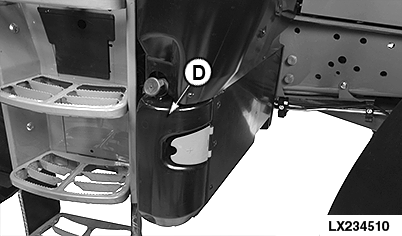

D - Reservoir for Windshield Washer System

Windshield wiper switch (A) has four positions, of which only three are used:

• 1 = Off
• 2 = Slow wipe
• 3 = Fast wipe
• 4 = Not used

The window washer system is operated using switch (A) (push towards steering column).

Rear window wiper switch (B) has three positions:

• 1 = Off
• 2 = Slow wipe
• 3 = Fast wipe

The window washer system is operated using switch (B) (push the switch).

Add anti-freeze solution to water in reservoir (D) if temperature is liable to drop below freezing point.

IMPORTANT: Never open the rear window fully without first checking that the rear wiper has reached its home position.

Rear window wiper and washer system only operate if the rear window is closed.
