Starting the Engine

CAUTION: Never operate the engine in a closed building. Danger of poisoning!

Before starting the engine, close the hood.

  1. Set selective control valve levers (A) to neutral position.

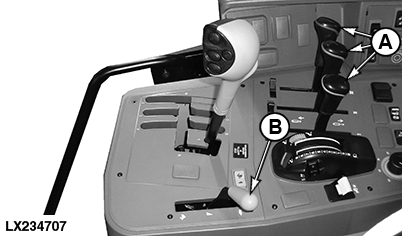

    LX234707
    LX234707-UN-17JUN15

    Range-Shift Lever with PowrQuad™ / AutoQuad™ (Version 1)

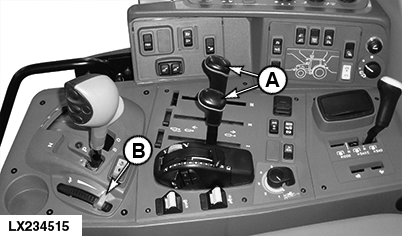

    LX234515
    LX234515-UN-06MAR15

    Range-Shift Lever with PowrQuad™ / AutoQuad™ (Version 2)

    A - SCV Control Levers

    B - Hand Throttle

  2. Move hand throttle lever (B) to a medium speed setting (first third of lever travel).
  3. Move reverse drive lever (C) into neutral position and engage park lock.

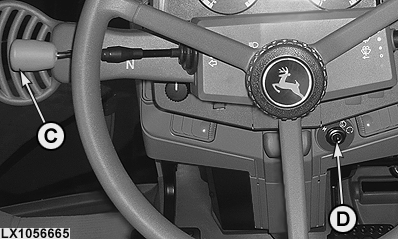

    LX1056665
    LX1056665-UN-05SEP12

    C - Reverse Drive Lever

    D - Key Switch

  4. Turn key in key switch (D) one position to the right.
  5. Wait until the glow-plug indicator light (E) goes out.

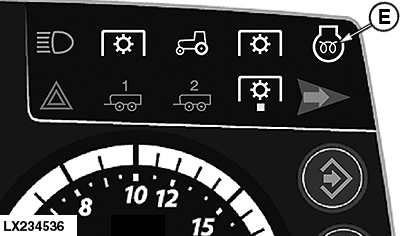

    LX234536
    LX234536-UN-12FEB15

    E - Glow-Plug Indicator Light

  6. Turn key in key switch (D) clockwise to end position. As soon as engine starts, release key.

Do not operate starting motor for more than 30 seconds at a time. Turn key in key switch to “zero”. Wait at least one minute before attempting to start again.

After starting the engine, wait 2 seconds before operating switches or controls since the electronic system of the tractor is checked.

IMPORTANT: During the warm-up phase, operate the tractor at moderate load only. Once operating temperature has been reached (see temperature indicator), full power becomes available.

NOTE: Until a coolant temperature of 20 °C (68 °F) is reached, the engine will rotate at an increased lower idle speed (at least 1050 rpm). Engine speed depends on the transmission type.


Please note:

When the engine is stopped and restarted, various functions are reset to their default settings.

Functions that are reset to the default when restarted. Some functions depend on the equipment of the tractor

Feature

Reset to default

Vibration damping of the front loader

OFF

Power Take-Off

OFF

Remote control of PTO

OFF

Differential lock

OFF

Reverse Drive Lever

If forward or backward was selected last, the system will reset to NEUTRAL after restart.

Multi-function lever, electrical

Locked

E-SCVs

Locked

iTEC™

OFF

OULXA64,00035CF-19-20180827
