Attach Three-Point Hitch Mounted and Drawn Implements

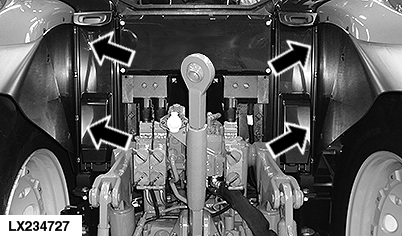

Be sure not to damage exposed parts of cab (see arrows) when attaching three-point hitch mounted or drawn implements.

CAUTION: Do not stand between tractor and implement unless the park lock is already engaged.

IMPORTANT: When attaching three-point hitch mounted or drawn implements for the first time, conduct a trial to ensure that implement will not damage cab or other tractor components in any position. With hitch-mounted implements, pay attention to the highest lift position; with drawn implements, be careful when turning sharply.

Also comply with instructions under Hydraulic Center Link, where applicable.

LX234727-UN-17JUN15

LX234563-UN-12MAR15

If a drawbar is installed, set it in the front, short position. The drawbar can also be swung to the right or left and secured there.

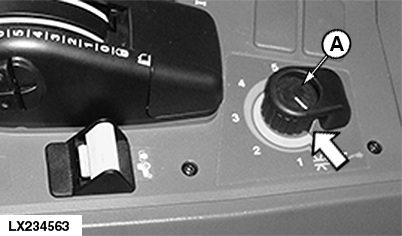

When attaching an implement, first make sure that the load/depth control (A) is set to 0 (depth control).

IMPORTANT: Do NOT let the draft links or lift links come into contact with the tires or other tractor components. The gap between lift links and tires can be increased by installing the lift links in the front holes of the draft links.

When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.
