Stabilizing System (If Equipped)

IMPORTANT: To prevent malfunctions, always attach the loose end of the chain at position (A).

The stabilizing system is operated by means of chain (A) and flap cover (B). If flap cover (B) is raised, the draft links have lateral play, otherwise they are locked.

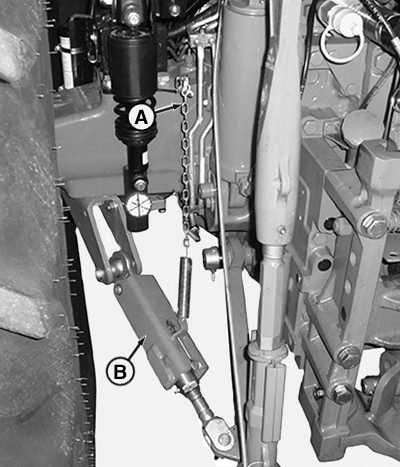

LX314970-UN-11JUL17

Chain (A) short:

Draft links are locked in raised position (rigid setting), in lowered position they have lateral play.

Chain (A) long:

Draft links are locked in all positions.

IMPORTANT: Do NOT let the draft links or lift links come into contact with the tires or other tractor components. When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.
