Selective Control Valves, Mechanical - Control Levers

CAUTION: To avoid personal injury, ensure that hoses are not reversed. If hoses are reversed, cylinder extends when it should retract.

IMPORTANT: Lock the selective control valves against unintended actuation when driving on roads and whenever the SCV control levers are in neutral because they are not needed. See also “Selective Control Valves, Mechanical - Transport Lock” on the following pages.

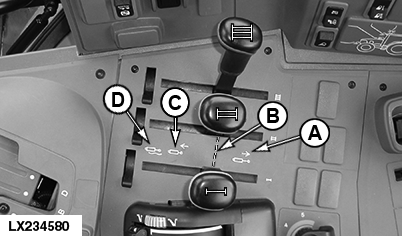

LX234580
LX234580-UN-19MAR15

Control Lever for SCV I to III

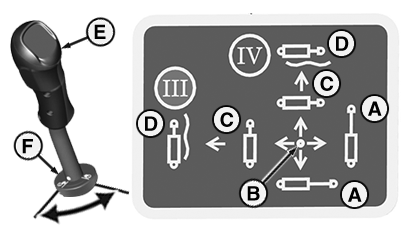

LX364347
LX364347-UN-26MAR19

Multi-Function Lever for Operating the SCV III and IV (if equipped)

I - Control Lever, SCV I

II - Control Lever, SCV II

III - Control Lever, SCV III

A - Extend

B - Neutral Position

C - Retract

D - Float Position

E - Multi-Function Lever, SCVIII and SCV IV

F - Locking Ring (Transport Lock)

The following description refers to selective control valves with disabled lock function:

The SCV control levers may be moved into 4 positions.

A — Extend (detent position)
If the lever is moved to the extend detent position and released, the lever returns to neutral position only when the hydraulic cylinder has been extended. The hydraulic cylinder is held in position.

A/B — Position between neutral and extend detent position
If the lever is moved between neutral and extend detent, the cylinder will be extended slowly. The further the lever is moved to the detent position, the faster the hydraulic cylinder is extended. If the lever is released, the lever returns to neutral and the hydraulic cylinder is held in position.

B — Neutral position (between retract and extend)
In neutral position, the hydraulic cylinder is held in position.

B/C — Position between neutral and retract detent position
If the lever is moved between neutral and retract detent, the cylinder will be retracted slowly. The further the lever is moved to the detent position, the faster the hydraulic cylinder is retracted. If the lever is released, the lever returns to neutral and the hydraulic cylinder is held in position.

C — Retract (detent position)
If the lever is moved to the retract detent position and released, the lever returns to neutral position only when the hydraulic cylinder has been retracted. The hydraulic cylinder is held in position.

D — Float position (detent position)
If the lever is moved beyond the retract detent position and detented in the float position, the piston of the hydraulic cylinder can move freely and the attached implement can follow the ground contour.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

NOTE: To release hydraulic pressure in the implement, move the lever to float position (D) while engine is running.

CAUTION: Danger of accidents when an (Economy) front hitch and front couplers are installed!

Make sure that selective control valves I and II cannot be used for two applications.

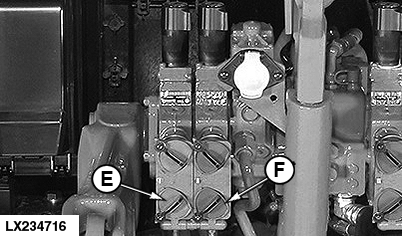

LX234716
LX234716-UN-26JUN15

Selective Control Valves I and II

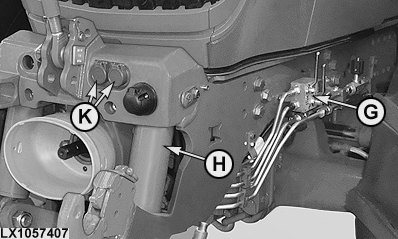

LX1057407
LX1057407-UN-07MAY14

Economy Front Hitch

E - SCV I

F - SCV II

G - Shut-Off Valve

H - Front Hitch

K - Front Coupler, SCV II

Use of selective control valve I:

  • When using selective control valve I (E), make sure that shut-off valve (G) is closed.
  • When using front hitch (H), make sure that the shut-off valve is open and no other implement is connected to selective control valve I.

Use of selective control valve II:

  • When using selective control valve II (F), make sure that no other implement is connected to front couplers (K).
  • When using front couplers (K), make sure that no other implement is connected to selective control valve II (F).

OULXA64,000361F-19-20190327
