Mechanical Selective Control Valves - Transport Lock

CAUTION: Danger of fatal injury from unexpected actions of implements and tractor components.

Accidentally triggered functions of implements that are connected to the selective control valves might lead to fatal accidents.

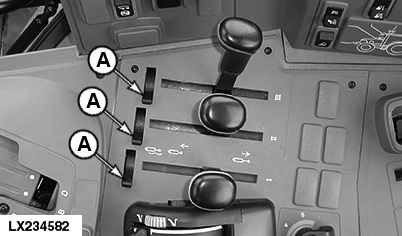

The transport lock must be activated when driving on roads, and whenever the selective control valves are not needed. Move levers to neutral position and lock with levers (A).

LX234582-UN-19MAR15

With lever (A), each control lever for selective control valves can be locked in neutral position (transport lock). If necessary, the control levers can be locked in float position.
