Controls for Hydraulic Quick Release and Worklights on Front Loader (if Equipped)

CAUTION: It is not permitted to use worklights on public roads.

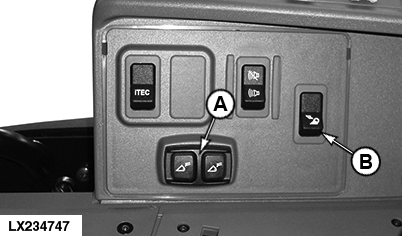

LX234747
LX234747-UN-03SEP15

A - Buttons for Rapid Hydraulic Disengagement

B - Worklight Switch

Press the buttons (A) for locking and unlocking when changing the front loader's implement.

NOTE: Refer to the operator's manual of the front loader for more information.

The worklights on the front loader can be switched on and off with switch (B) as soon as the worklights are switched on. See in addition "Lighting System - Front Loader Worklights" in Section 90G.

OULXA64,0003630-19-20171222
