Access to the Battery

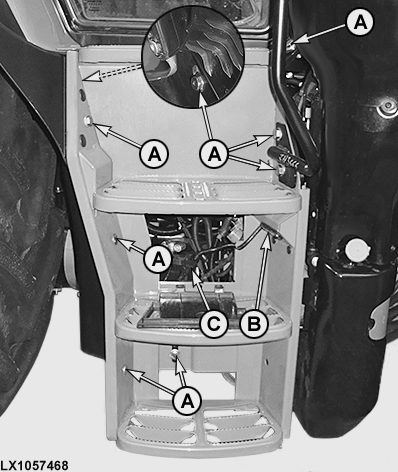

LX1057468-UN-22AUG14
The battery is located underneath the right access step.
Open the flap; if necessary, remove the access step. To do this, take
out attaching screws (A) and remove the access step.
IMPORTANT: On tractors with step lighting (B), first open the
cover and disconnect light connector (C) before taking off the step.
|
|
OULXA64,0003635-19-20150401
|
|
