Fuses and Relays (LCS) and (FRM), General Information - Tractors with Operator's Cab

General Information

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than specified on the arrangement diagram.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

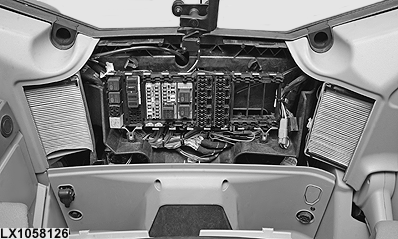

The fuse and relay box (LCS) is located behind the operator's seat, below the cab rear window.

NOTE: Fuses (FRM) are located in the frame (FRAME = FRM) of the fuse and relay box (LCS).

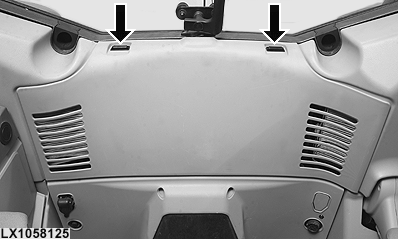

Press down the latches and remove the cover.

LX1058125-UN-06SEP12

LX1058126-UN-06SEP12

Fuse and Relay Box (LCS) or (FRM)

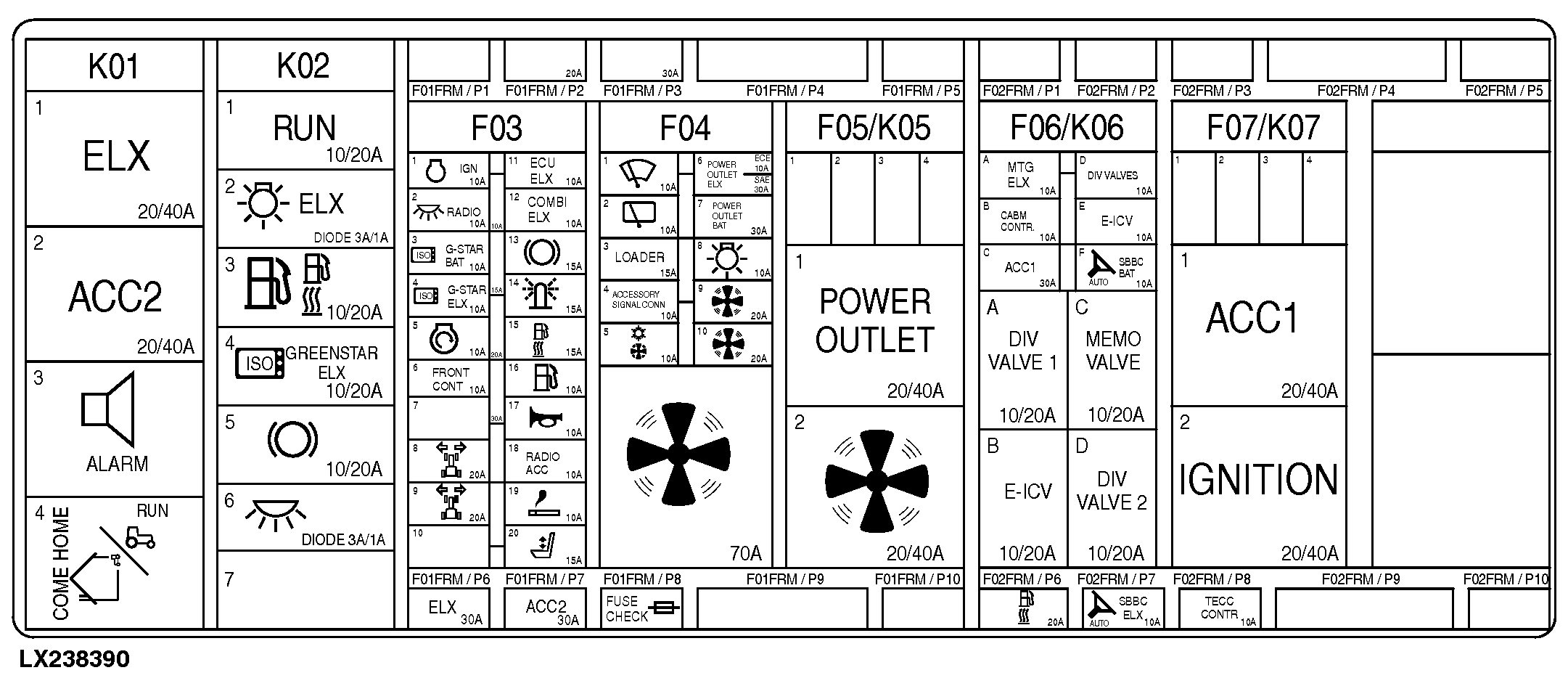

Summary — Fuses and relays (LCS) and (FRM)

LX238390-UN-14APR15
