Lighting of the Transmission Shift Unit - Replace Bulb

  1. Switch off lighting and let bulbs cool down.

    LX314943
    LX314943-UN-30JUN17

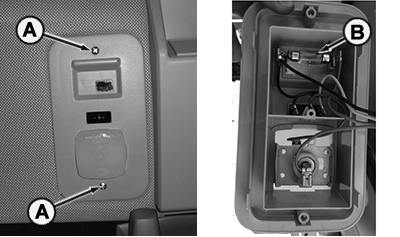

  2. Take out screws (A) and remove the cover.

  3. Remove bulb (B).

  4. Using a clean cloth, install a new bulb.

  5. Install the cover and tighten screws (A).

OULXA64,0003686-19-20170713
