Shift the PowrQuad™ Transmission

LX234665-UN-17APR15

LX234664-UN-17APR15

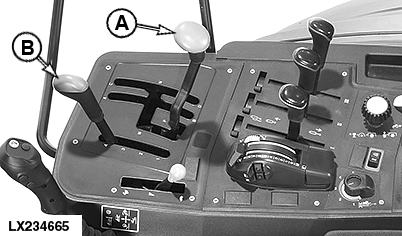

A - Range-Shift Lever

B - Gear-Shift Lever

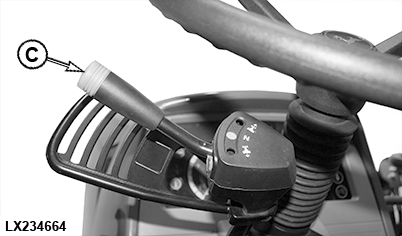

C - Reverse Drive Lever

Gears are shifted by means of range-shift lever (A), gear-shift lever (B) and reverse drive lever (C).

NOTE: After the engine has been started, wait for 5 seconds before moving the reverse drive lever (C) out of neutral position.

The clutch pedal must be depressed to change the ranges. There is no need to depress the clutch pedal to shift gears or to change the direction of travel.

CAUTION: If the engine is running and a range has been selected, actuating the reverse drive lever will cause the tractor to start moving.

IMPORTANT: Engage park lock only when the tractor is stationary.

Optimum gear-shifting for driving under load (transport):

1. Select a range suitable for driving under load.
2. Engage the first gear.
3. Drive and shift up through the ranges until the top range is reached.
4. Shift up through the gears.
