Access to Fuses

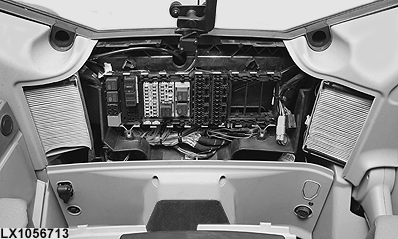

The fuse and relay box of the Load Center Secondary (LCS) circuit is located behind the operator's seat.

LX1056713-UN-12JUL12

Fuses for Tractors with Cab (LCS)

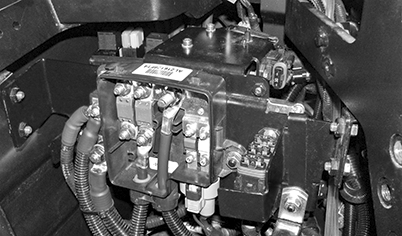

The fuses and relays of the Power Link Box (PLB) are located behind the right access step.

LX234619-UN-09APR15

Fuse Box behind Access Step (PLB)

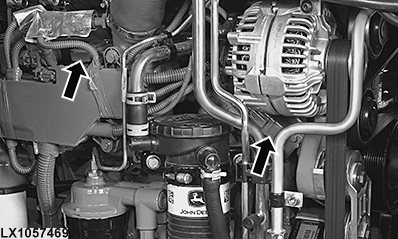

The fuse and relay of the electrical starting aid are located on the right side of the engine.

LX1057469-UN-22AUG14

Fuse on Engine
