Check Engine Oil Level - 4-Cylinder Engines

Check with dipstick:

LX234657-UN-16APR15

LX1049783-UN-12AUG10

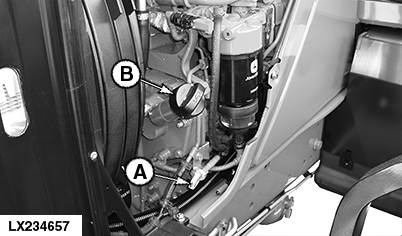

A - Oil Dipstick

B - Oil Filler Neck

1. Preconditions for checking engine oil level:

   • Tractor parked on level surface
   • Park lock ON
   • Engine OFF



   2 ways to check the engine oil level:
   Cold engine oil	Warm engine oil
   Check when the oil is cold, when the engine has been off for a long time (e.g. in the morning before starting the engine).	If the engine has warmed up, shut the engine off and wait approx. 40 minutes (oil at a temperature of approx. 40 °C; 104 °F).

2. Use oil dipstick (A) to check the level of the engine oil.

3. Remove the dipstick, wipe it clean, insert it as far as it will go, and pull it out again.

4. The oil level must be within the hatched area on the dipstick. Oil level must be corrected if the oil is above the top edge or below the bottom edge.

   Do not start the engine if oil level is below lower mark on dipstick.

5. If necessary, refill with oil of correct viscosity. See the Fuel, Lubricants, Hydraulic Oil and Coolant section.
