Bleed Air from Fuel System - 4-Cylinder Engines

CAUTION: High-pressure fluid remaining in the fuel lines can cause serious injury. Do not disconnect or attempt to repair fuel lines, sensors or any other components between injection pump and nozzles.

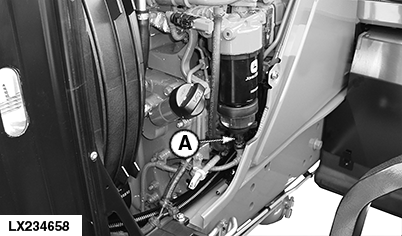

The fuel system needs to be bled whenever the fuel tank has been run dry or fuel filter (A) has been replaced.

LX234658-UN-16APR15

Turn key in ignition switch to the right to the first switch position and run the fuel transfer pump for approx. 120 seconds. Repeat as necessary.
