Dimensions - 6145M with Open Operator's Station and Adjustable Front Axle

LX234692-UN-24APR15

LX234693-UN-24APR15

	Open Operator's Station
	[mm]	[in.]

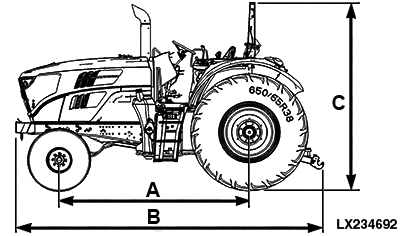

A - Wheel Base..............	2990	117.7
B - Length
• Basic weight (110 kg) to draft link in horizontal position (hoes, CAT3) ..............	4895	192.7
• Front weight (1150 kg) to draft link in horizontal position (hoes, CAT3) ..............	5310	209.1
C - Height
- Maximum total height from ground to extended Roll-Over Protective Structure (without beacon light), with rear tires with an SRI of:
• SRI 800 ..............	2847	112.1
• SRI 825 ..............	2872	113.1
• SRI 875 ..............	2922	115.0
• SRI 925 ..............	2972	117.0

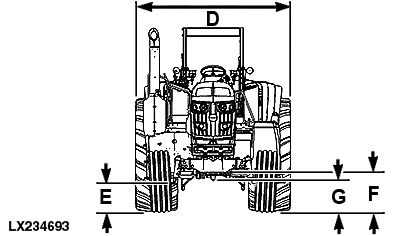

D - Width
• Front axle - flange to flange ..............	1610	63.4
• Front axle - maximum tread width without extension ..............	2220	87.4
• Rear axle - flange to flange ..............	1664	65.5
• Maximum width for road travel	2550	100.4
E - Ground Clearance at Front Axle Steering Knuckle
- Maximum ground clearance with front tires with an SRI of:
• SRI 425 ..............	334	13.2
• SRI 450 ..............	359	14.1
F - Ground Clearance at Front Axle
- Maximum ground clearance with front tires with an SRI of:
• SRI 425 ..............	528	20.8
• SRI 450 ..............	553	21.8
G - Ground Clearance at Differential Housing with Drawbar Mount
- Maximum ground clearance with rear tires with an SRI of:
• SRI 800 ..............	448	17.61
• SRI 825 ..............	473	18.61
• SRI 875 ..............	523	20.61
• SRI 925 ..............	573	22.61

IMPORTANT: Ground clearance and height of the tractor depend on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
