Dimensions - 6145M with Open Operator's Station and Front-Wheel Drive Axle

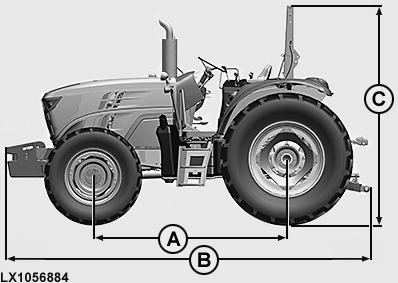

LX1056884-UN-07MAY13

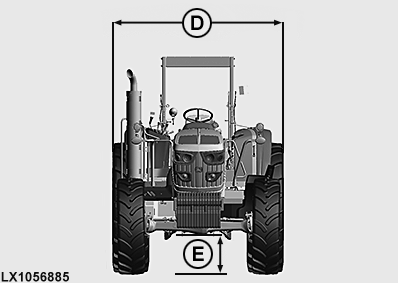

LX1056885-UN-07MAY13

	Open Operator's Station
	[mm]	[in.]
A - Wheel Base..............	2765	108.9
B - Length
• Basic weight (110 kg) to draft link in horizontal position (hoes, CAT3) ..............	4895	192.7
• Front weight (1150 kg) to draft link in horizontal position (hoes, CAT3) ..............	5310	209.1
C - Height
- Maximum total height from ground to extended ROPS (without beacon light), with rear tires with an SRI of:
• SRI 800 ..............	2847	112.1
• SRI 825 ..............	2872	113.1
• SRI 875 ..............	2922	115.0
• SRI 925 ..............	2972	117.0
D - Width
• Front axle, three parts - flange to flange ..............	1940	76.4
• Rear axle - flange to flange ..............	1664	65.5
• Maximum width for road travel ..............	2550	100.4
E - Ground Clearance
- Maximum ground clearance at front-wheel drive axle, with front tires with an SRI of:
• SRI 600 ..............	455	17.9
• SRI 625 ..............	480	18.9
• SRI 650 ..............	505	19.9
• SRI 675 ..............	530	20.9
• SRI 725 ..............	580	22.8
- Maximum ground clearance at differential housing with drawbar mount, with rear tires with an SRI of:
• SRI 800 ..............	448	17.61
• SRI 825 ..............	473	18.61
• SRI 875 ..............	523	20.61
• SRI 925 ..............	573	22.61

IMPORTANT: Ground clearance and height of the tractor depend on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
