Dimensions - 6145M with Operator's Cab, without Front-Wheel Drive Axle

LX1056907-UN-06JUN13

LX1056908-UN-06JUN13

	Cab without low profile

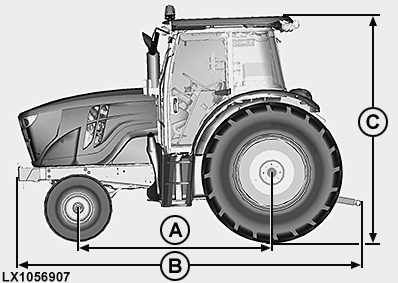

A - Wheel Base..............	2765 mm	(108.9 in.)
B - Length
• Basic weight (110 kg) to draft link in horizontal position ..............	4726 mm	(186.1 in.)
• Front weight (1150 kg) to draft link in horizontal position..............	5141 mm	(202.4 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 800 ..............	2853 mm	(112.3 in.)
• SRI 825 ..............	2878 mm	(113.3 in.)

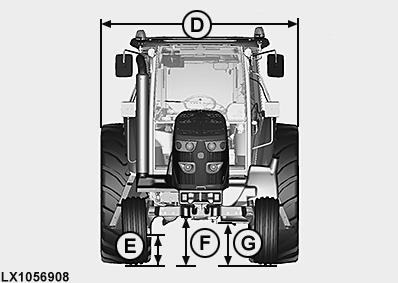

D - Width
• Front axle - flange to flange ..............	1610 mm	(63.4 in.)
• Front axle - maximum tread width without extension ..............	2220 mm	(87.4 in.)
• Rear axle - flange to flange ..............	1664 mm	(65.5 in.)
• Maximum width for road travel	2550 mm	(100.4 in.)
E - Ground Clearance at Front Axle Steering Knuckle
- Maximum ground clearance with front tires with an SRI of:
• SRI 425 ..............	374 mm	(14.7 in.)
• SRI 450 ..............	399 mm	(15.7 in.)
F - Ground Clearance at Front Axle
- Maximum ground clearance with front tires with an SRI of:
• SRI 425 ..............	568 mm	(22.4 in.)
• SRI 450 ..............	593 mm	(23.3 in.)
G - Ground Clearance at Differential Housing (with Drawbar)
- Maximum ground clearance with rear tires with an SRI of:
• SRI 800..............	523 mm	(20.6 in.)1
• SRI 825 ..............	548 mm	(21.6 in.)1

IMPORTANT: The ground clearance or height of the tractor depends on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
