Fuses and Relays (LCS) and (FRM), General Information - Tractors with Open Operator's Station

General information

LX1058142-UN-14SEP12

LX238386-UN-08APR15

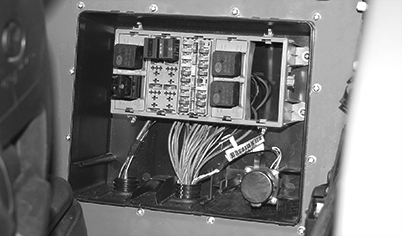

Fuse and Relay Box (LCS) or (FRM)

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than specified on the arrangement diagram.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

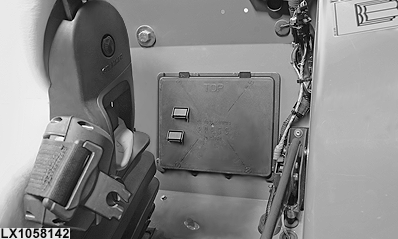

Fuse and relay box (LCS) is located on the left behind the operator's seat.

NOTE: Fuses (FRM) are located in the frame (FRAME = FRM) of the fuse and relay box (LCS).

Press down the latches and remove the cover.

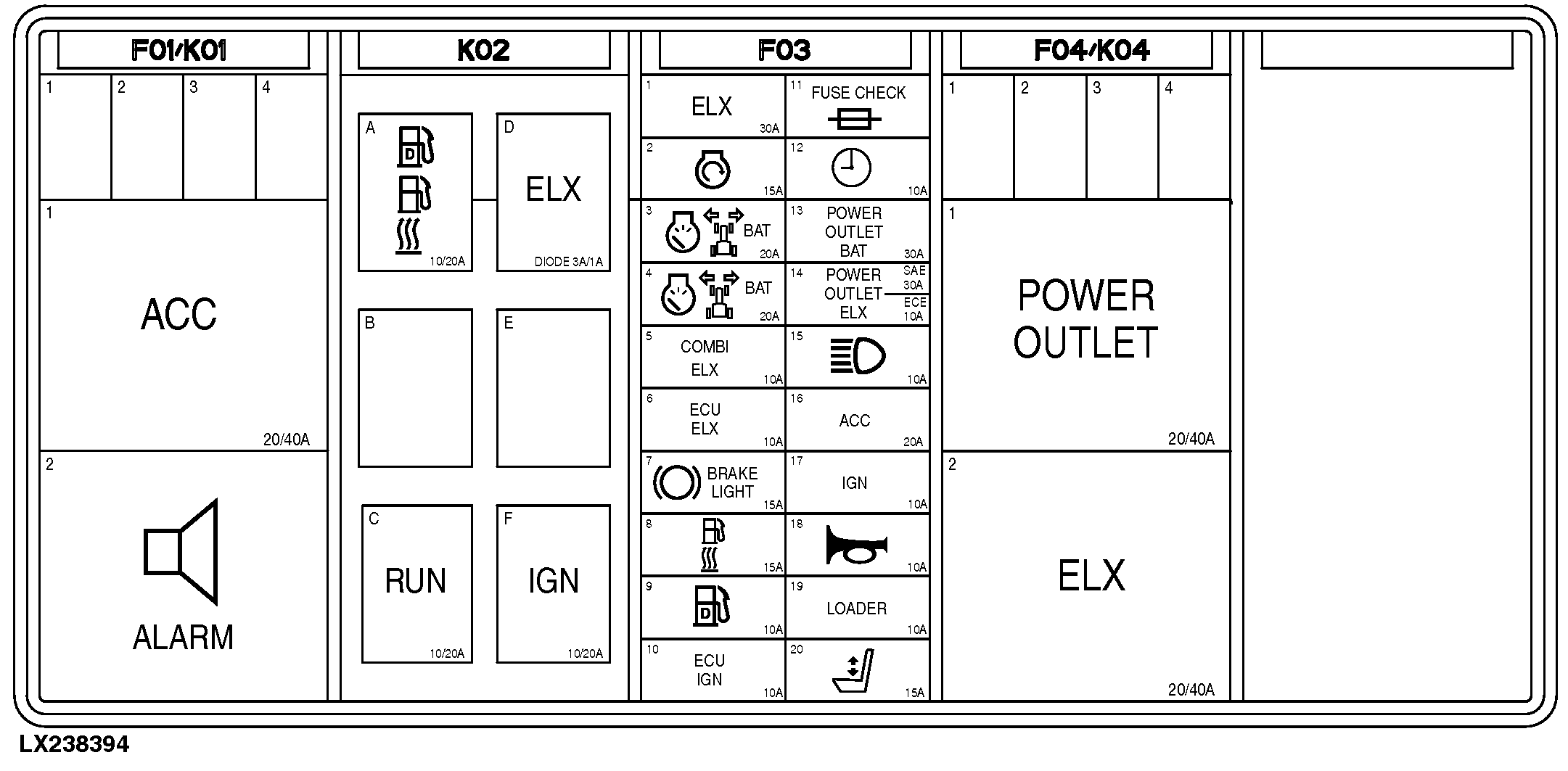

Summary — Fuses and relays (LCS) and (FRM)

LX238394-UN-14APR15
