Three-Piece Front Axle (Version 1) — Adjust the Fenders

LX1057506
LX1057506-UN-26MAY15

“OUT” Position

LX1057507
LX1057507-UN-27MAY15

“IN” Position

A - Fender Base Support

B - Console

C - Base Plate

The fenders may be adjusted individually. Several adjusting positions are possible. Tilt, width and height of the fenders can be adjusted depending on tire size.

IMPORTANT: If the position at which console (B) is installed is to change from “IN” to “OUT”, the fender base supports (A) and consoles (B) need to be removed on both sides. Then, on the opposite side of the tractor, install consoles (B) on base plate (C) at position “I” as shown (without turning the consoles). Then install the fender base supports (A) on the consoles as shown.

IMPORTANT: Additional setting options are not available.

To adjust the fenders, perform the following steps:

LX1031619
LX1031619-UN-31MAY06

LX1033894
LX1033894-UN-11MAR04

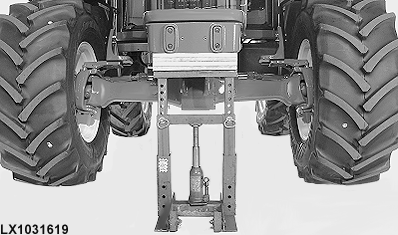

  1. Raise front of tractor so that the front-wheel drive axle can pivot freely.

  2. Turn steering wheel fully in both directions and pivot the axle in both directions to stop to determine the most suitable fender mounting position.

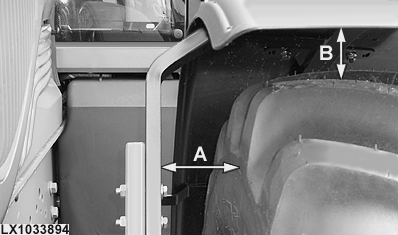

  3. Adjust fender position so that the minimum clearances (see illustration) are met. There should not be any contact with the tractor frame.

    A = 40 mm (1.57 in.)1, B = 60 mm (2.36 in.)1

    IMPORTANT: If snow chains are installed on the tires, the minimum distance from the tires to the fenders (side wall to fender and running surface to fender) must be 100 mm (3.94 in.).

  4. Adjust fender stop to prevent it from being seized at the edges with steering wheel fully turned and axle pivoting. Make sure that the stop contacts the tractor frame before reaching the fender.

  5. LX1031620
    LX1031620-UN-24APR06

    Also adjust the steering stops to make sure that neither the wheel nor the fender come into contact with tractor components (e.g. fuel tank).

    IMPORTANT: Also refer to the following in this section:

    • “Three-Piece Front Axle (Version 1) — Notes on Adjusting the Fenders”

    • “Three-Piece Front Axle (Version 1) — Notes on Adjusting the Steering Stop”


  6. Tighten the screws to the following torque values:

    LX1057505
    LX1057505-UN-26MAY15

    Console Shown in “IN” Position

    A - Cap Screws, Fender Base Support to Console

    B - Cap Screws, Console to Base Plate

    C - Cap Screws, Base Plate to Knuckle Housing

    Screws (A) ..............

    90 N·m (66 lb.-ft.)

    Screws (B) ..............

    135 N·m (100 lb.-ft.)

    Screws (C) ..............

    225 N·m (165 lb.-ft.)


1 Europe only. In non-European countries, a minimum clearance of 25 mm (1,0 in.) is recommended.
