Vehicle Controls with PowrQuad™ PLUS and AutoQuad™ PLUS Transmissions

LX234699-UN-17JUN15

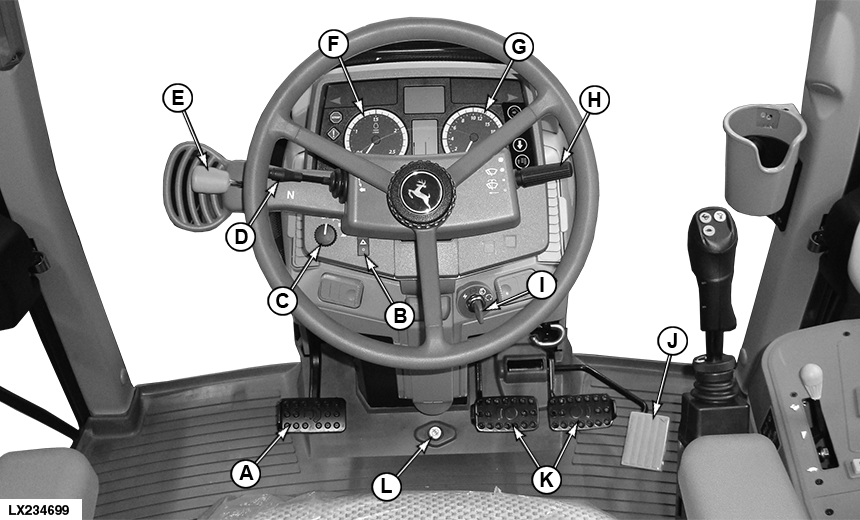

Vehicle Controls - Foot Brake with Steering Brake (two Brake Pedals) Shown

LX234700-UN-17JUN15

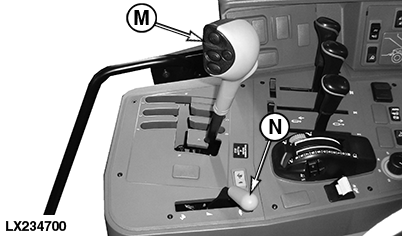

Vehicle Controls with PowrQuad™ PLUS Transmission Shown

A - Clutch Pedal

B - Hazard Warning Light Switch

C - Light Switch

D - Turn-Signal Lever

E - Reverse Drive Lever

F - Revolution Counter

G - Speedometer

H - Wiper Switch

I - Key Switch

J - Foot Throttle

K - Foot Brake with Steering Brake (Two Brake Pedals)

L - Differential Lock¹

M - Range-Shift Lever with Gear-Shift Buttons, Automatic Button and Hand Clutch Button

N - Hand Throttle

NOTE: The foot brake may or may not have a steering brake.

• With Steering Brake — Two Brake Pedals
• Without Steering Brake — One Brake Pedal
