Overview of the Lights

LX234702-UN-26JUN15

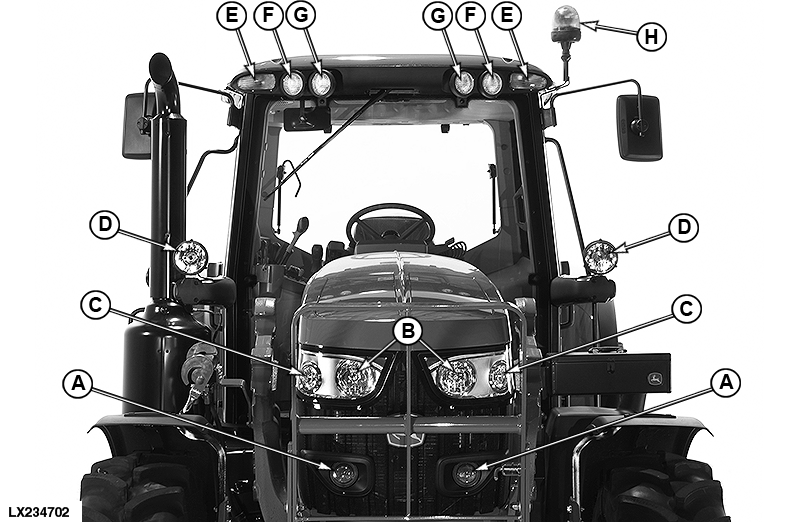

A	Headlights (Low Beam)	E	Amber Turn-Signal and Hazard-Warning Lights (on Front of Roof, Both Sides, Outside)
B	Headlights (High Beam)	F	Worklights1 (on Front of Roof, Both Sides, Outside)
C	Worklight1	G	Worklights1 (on Front of Roof, Both Sides, Inner)
D	Additional Headlights1 (Low Beam and High Beam) or Worklights1 (on Both Sides of Cab Frame)	H	Rotating Beacon light1

IMPORTANT: Use hazard warning lights when driving on public roads.

When the right turn-signal light is activated, the right turn-signal light flashes and the left turn-signal light shines continuously.

When the left turn-signal light is activated, the left turn-signal light flashes and the right turn-signal light shines continuously.

NOTE: H9 bulbs must NOT be used in front corner worklights (C).

The tractor shown in the illustrations is equipped with optional lighting.

LX333670-UN-26SEP18

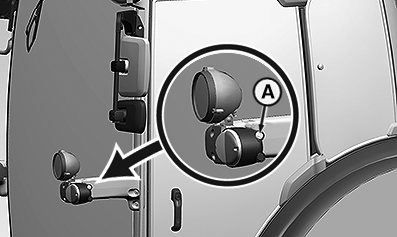

A - Side Marker Light, Both Sides¹

LX234772-UN-16NOV15

LX234773-UN-16NOV15

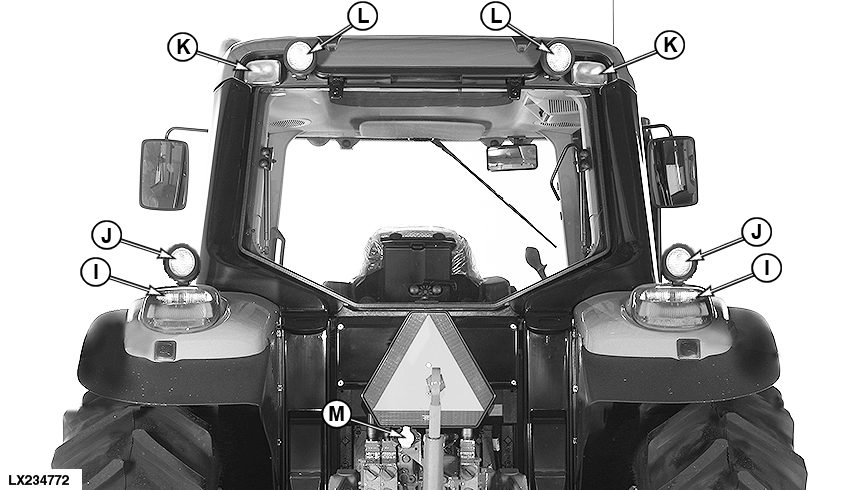

I	Red Tail Lights/Brake Lights and Amber Turn-Signal Lights (on Rear of Fenders, Both Sides)
J	Worklights1 (on Left or Right Rear Fenders)
K	Amber Turn-Signal and Hazard-Warning Lights (on Rear of Roof, Both Sides, Outside)
L	Worklights1 (on Rear Inner Roof, Both Sides)
M	Seven-Pin Trailer Socket for Lights

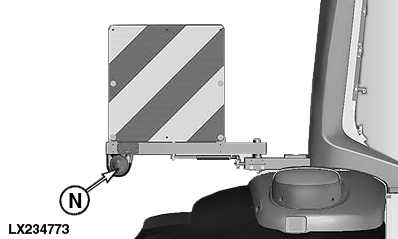

NO	Extra-Wide Vehicle Lighting1 (Hazard Warning Light, Both Sides)

IMPORTANT: Use hazard warning lights when driving on public roads.

If the right turn signal is activated, the right turn-signal light flashes on the roof and on the fender. The left turn-signal light on the roof shines continuously and the left turn-signal light on the fender remains off.

If the left turn signal is activated, the left turn-signal light flashes on the roof and on the fender. The right turn-signal light on the roof shines continuously and the right turn-signal light on the fender remains off.
