Lighting System - Overview of the Lights (Tractors with Open Operator's Station)

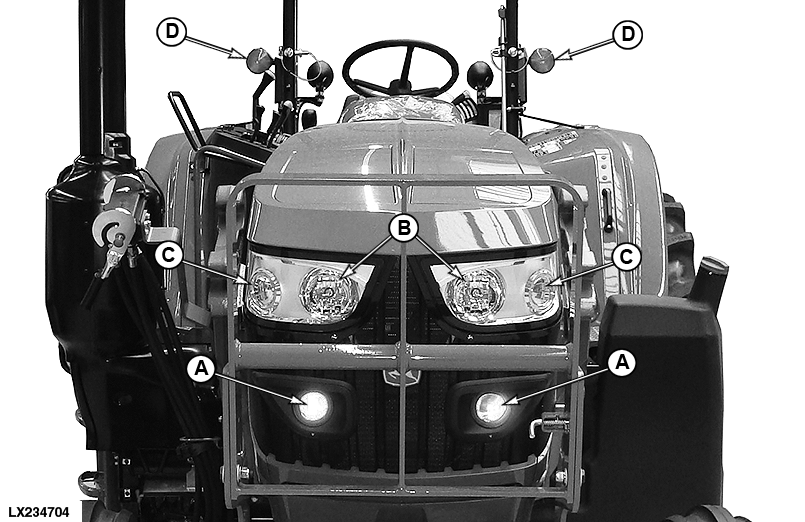

LX234704-UN-26JUN15

A	Headlights, Low Beam (on Both Sides of Engine Hood)
B	Headlights, High Beam (on Both Sides of Engine Hood)
C	Worklights1 (on Both Sides of Engine Hood)
D	Amber Turn-Signal and Hazard-Warning Lights (Roll-Over Protective Structure on Both Sides)

IMPORTANT: Use hazard warning lights when driving on public roads.

When the right turn-signal light is activated, the right turn-signal light flashes and the left turn-signal light shines continuously.

When the left turn-signal light is activated, the left turn-signal light flashes and the right turn-signal light shines continuously.

NOTE: H9 bulbs must NOT be used in front corner worklights (C).

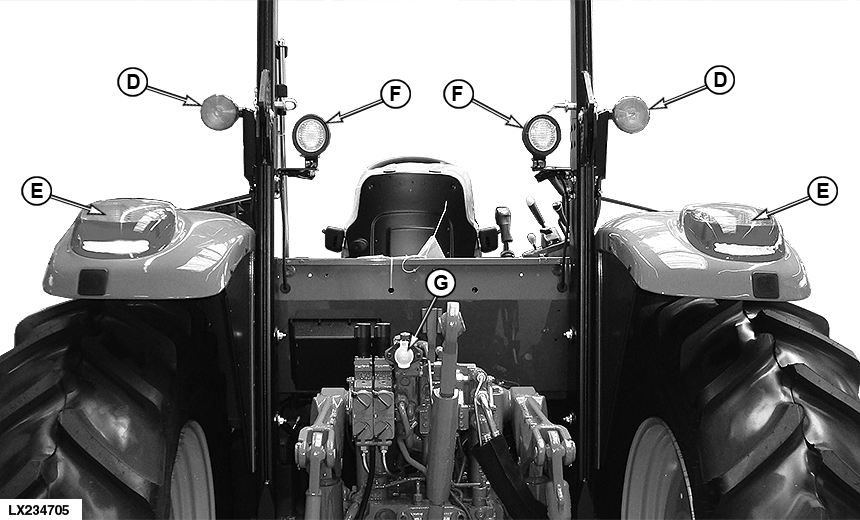

LX234705-UN-26JUN15

D	Amber Turn-Signal and Hazard-Warning Lights (Roll-Over Protective Structure on Both Sides)
E	Red Tail Lights/Brake Lights and Amber Turn-Signal Light (on Rear of Fenders, Both Sides)
F	Worklights2 (on Rear of ROPS, Both Sides)
G	Seven-Pin Trailer Connector for Lights

IMPORTANT: Use hazard warning lights when driving on public roads.

If the right turn signal is activated, the right turn-signal light flashes on the roll-over protective structure and on the fender. The left turn-signal light on the roll-over protective structure shines continuously and the left turn-signal light on the fender remains off.

If the left turn signal is activated, the left turn-signal light flashes on the roll-over protective structure and on the fender. The right turn-signal light on the roll-over protective structure shines continuously and the right turn-signal light on the fender remains off.
