Three-Piece Front Axle (Version 1) — Tread Widths for Front Wheels with Rims for 16 Positions - 6145M

LX1057503-UN-13MAY15

Three-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Three-Piece Front Axle (Version 1) — Overview of Axle Category and Axle Type”
2. “Three-Piece Front Axle (Version 1) — Adjust the Fixed Fenders and Steering Stop”
3. “Preventing Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

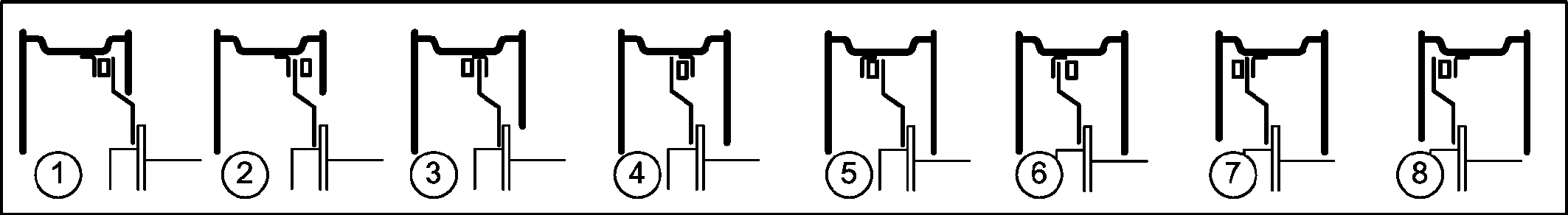

LX1053419-UN-16MAR12

Tread Widths for Front Wheels with Rims for 16 Positions / Positions 1 to 8

		Tread width setting on delivery	Three-Piece Front Axle – Tread Widths (Front Wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
14.9R24	mm	1824	2240	—**	—**	2124	2056	—**	—**	1940
	in.	71.81	88.19			83.62	80.94			76.38
16.9R24	mm	1824	2240	—**	—**	2124	2056	—**	—**	1940
	in.	71.81	88.19			83.62	80.94			76.38
320/85R34 -R1	mm	1792	2292	2262	2222	2192	2088	2058	2018	1988
	in.	70.55	90.24	89.05	87.48	86.30	82.20	81.02	79.45	78.27
320/90R42	mm	1816	2294	2264	2224	2194	2092	2062	2020	1990
	in.	71.50	90.31	89.13	87.56	86.38	82.36	81.18	79.53	78.35
380/85R24	mm	1834	2250	—**	—**	2134	2066	—**	—**	1950
	in.	72.20	88.58			84.02	81.34			76.77
420/70R24	mm	1824	2240	—**	—**	2124	2056	—**	—**	1940
	in.	71.81	88.19			83.62	80.94			76.38
420/85R24	mm	1834	2250	—**	—**	2134	2066	—**	—**	1950
	in.	72.20	88.58			84.02	81.34			76.77
480/65R24	mm	1824	2240	—**	—**	2124	2056	—**	—**	1940
	in.	71.81	88.19			83.62	80.94			76.38
480/70R24	mm	1824	2240	—**	—**	2124	2056	—**	—**	1940
	in.	71.81	88.19			83.62	80.94			76.38
540/65R24	mm	1824	2240	—**	—**	2124	2056	—**	—**	1940
	in.	71.81	88.19			83.62	80.94			76.38
270/80R36	mm	1822	2292	2262	2222	2192	2088	2058	2018	1988
	in.	71.73	90.24	89.05	87.48	86.30	82.20	81.02	79.45	78.27
270/95R32	mm	1824	2294	2264	2224	2194	2090	2060	2020	1990
	in.	71.81	90.31	89.13	87.56	86.38	82.28	81.10	79.53	78.35
270/95R38	mm	1822	2292	2262	2222	2192	2088	2058	2018	1988
	in.	71.73	90.24	89.05	87.48	86.30	82.20	81.02	79.45	78.27
380/85R30	mm	1822	2286	2256	2222	2192	2082	2052	2018	1988
	in.	71.73	90.00	88.82	87.48	86.30	81.97	80.79	79.45	78.27
** Installation in this position is not allowed

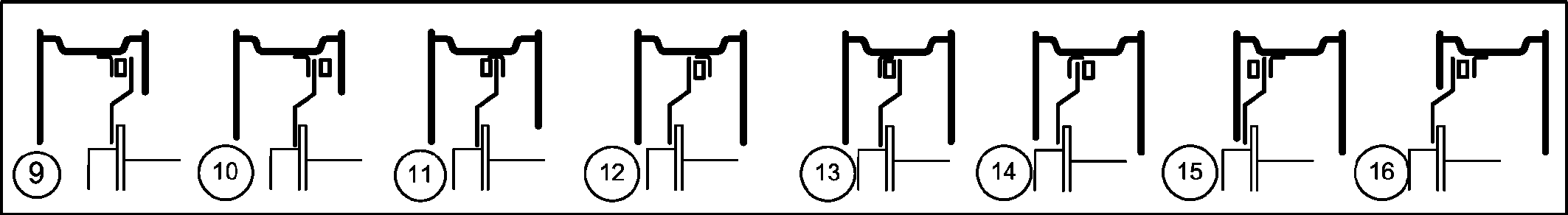

LX1053420-UN-16MAR12

Tread Widths for Front Wheels with Rims for 16 Positions / Positions 9 to 16

		Tread width setting on delivery	Three-Piece Front Axle – Tread Widths (Front Wheels) Arrangement of rim and wheel dish
Tires:			9	10	11	12	13	14	15	16
14.9R24	mm	1824	1920	—**	—**	1824	1756	—**	—**	1640
	in.	71.81	75.59			71.81	69.13			64.57
16.9R24	mm	1824	1920	—**	—**	1824	1756	—**	—**	1640
	in.	71.81	75.59			71.81	69.13			64.57
320/85R34 -R1	mm	1792	1892	1862	1822	1792	1688	1658	1618	1588
	in.	70.55	74.49	73.31	71.73	70.55	66.46	65.28	63.70	62.52
320/90R42	mm	1816	1888	1858	1816	1786	1684	1654	1614	1584
	in.	71.50	74.33	73.15	71.50	70.31	66.30	65.12	63.54	62.36
380/85R24	mm	1834	1930	—**	—**	1834	1766	—**	—**	1650
	in.	72.20	75.98			72.20	69.53			64.96
420/70R24	mm	1824	1920	—**	—**	1824	1756	—**	—**	1640
	in.	71.81	75.59			71.81	69.13			64.57
420/85R24	mm	1834	1930	—**	—**	1834	1766	—**	—**	1650
	in.	72.20	75.98			72.20	69.53			64.96
480/65R24	mm	1824	1920	—**	—**	1824	1756	—**	—**	1640
	in.	71.81	75.59			71.81	69.13			64.57
480/70R24	mm	1824	1920	—**	—**	1824	1756	—**	—**	1640
	in.	71.81	75.59			71.81	69.13			64.57
540/65R24	mm	1824	1920	—**	—**	1824	1756	—**	—**	1640
	in.	71.81	75.59			71.81	69.13			64.57
270/80R36	mm	1822	1892	1862	1822	1792	1688	1658	1618	1588
	in.	71.73	74.49	73.31	71.73	70.55	66.46	65.28	63.70	62.52
270/95R32	mm	1824	1894	1864	1824	1794	1690	1660	1620	1590
	in.	71.81	74.57	73.39	71.81	70.63	66.54	65.35	63.78	62.60
270/95R38	mm	1822	1892	1862	1822	1792	1688	1658	1618	1588
	in.	71.73	74.49	73.31	71.73	70.55	66.46	65.28	63.70	62.52
380/85R30	mm	1822	1886	1856	1822	1792	1682	1652	1618	1588
	in.	71.73	74.25	73.07	71.73	70.55	66.22	65.04	63.70	62.52
** Installation in this position is not allowed
