Lighting System - Worklight Switches (Tractors with Cab)

IMPORTANT: It is not permitted to use worklights on public roads.

If the engine is switched off, the worklights remain on and do not automatically switch off. If the engine is going to be in standstill for an extended period, switch off the worklights in advance.

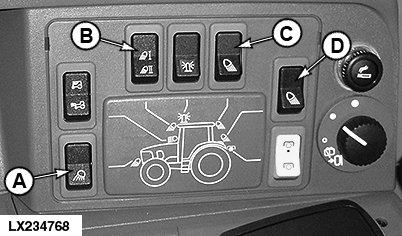

LX234768-UN-16NOV15

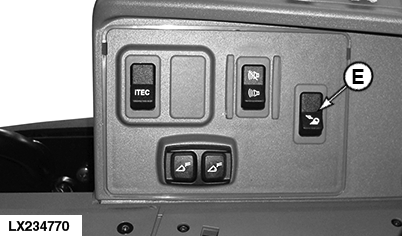

LX234770-UN-16NOV15

A - Front Corner Worklights (If Equipped)

B - Worklights on Front of Cab Roof

C - Worklights on Rear of Cab Roof

D - Worklights on Rear Fender (If Equipped)

E - Worklights on Front Loader (If Equipped)

The worklights can be switched on and off using the switches shown here once the light switch is set to position 4.
