CommandQuad™ PLUS – Adjust AutoClutch Sensitivity

AutoClutch is an automatic clutch function. When AutoClutch is switched on, the clutch pedal does not need to be pressed to stop the tractor.

If both brake pedals are depressed when driving the tractor, the speed will be reduced or the tractor stops. When the brake pedals are released again, the tractor automatically accelerates up to the speed currently commanded by the hand throttle or accelerator pedal.

The AutoClutch sensitivity can be adapted to different driving situations.

CAUTION: When AutoClutch is switched off, the clutch pedal needs to be pressed to stop the tractor.

IMPORTANT: AutoClutch only functions if both brake pedals are coupled together. Actuating a pedal individually (e.g. to steer) does NOT actuate the automatic clutch function.

IMPORTANT: AutoClutch remains switched on after start-up. If AutoClutch is switched off by the operator, it switches on again automatically the next time the tractor is started.

NOTE: For driving maneuvers using the steering brake (only one brake pedal is depressed), engine speed must not drop below 900 rpm, otherwise the AutoClutch function becomes active again.

Switch AutoClutch on and set sensitivity

LX1056690
LX1056690-UN-04JUL12

1 - Confirm Button

2 - Up Arrow Button

3 - Down Arrow Button

4 - Menu Button

  1. Press menu button (4) repeatedly until the page shown appears.

  2. With arrow buttons (2) or (3), select the desired checkbox (A) and press the confirm button (1).

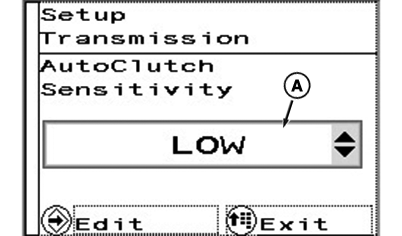

    LX266679
    LX266679-UN-16DEC15

    A - Adjust AutoClutch Sensitivity


  3. Use the arrow buttons to select the desired setting.

  4. Save selection using the confirm button.

  5. To exit, press menu button (4).

Settings of the AutoClutch sensitivity

OFF

Automatic Clutch function is off. It can be switched off only if the foot brake is NOT depressed.

Low:

is recommended for driving downhill with a trailer, particularly if ground conditions are difficult.

Medium:

is primarily for driving with a trailer in moderately hilly terrain.

High

is primarily for driving without a trailer or with a trailer on level ground.
