CommandQuad™ PLUS — Special Features when Maneuvering the Tractor

CAUTION: This description applies only if AutoClutch (the automatic clutch function) is switched on.

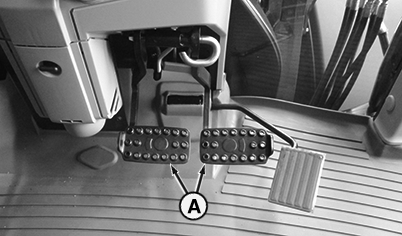

LX314961-UN-06JUL17

A - Brake Pedals

The automatic clutch function is activated by depressing the foot brake. Partially depressing both of the brake pedals allows the tractor to creep - this makes it easier to back up to an implement, for example. Fully depressing the two brake pedals stops the tractor. There is no need to depress the clutch pedal. However, be aware that:

• Full torque remains available even at very slow speeds. In certain conditions, even obstacles will not bring the tractor to a standstill.
• After the brakes are released, the tractor automatically accelerates up to the speed currently commanded by the hand throttle or accelerator pedal.
• If you go back to a tractor with a conventional transmission again (without Auto clutch function), remember that the transmission is not disconnected when the brake pedals are fully depressed.

NOTE: When engaging the park lock on a downhill slope, press both brake pedals to accelerate the change of direction.

Depress both brake pedals when turning on a downhill slope, as this will make the tractor change direction faster.
