Vehicle Controls with CommandQuad™ PLUS Transmission

LX266775-UN-01FEB16

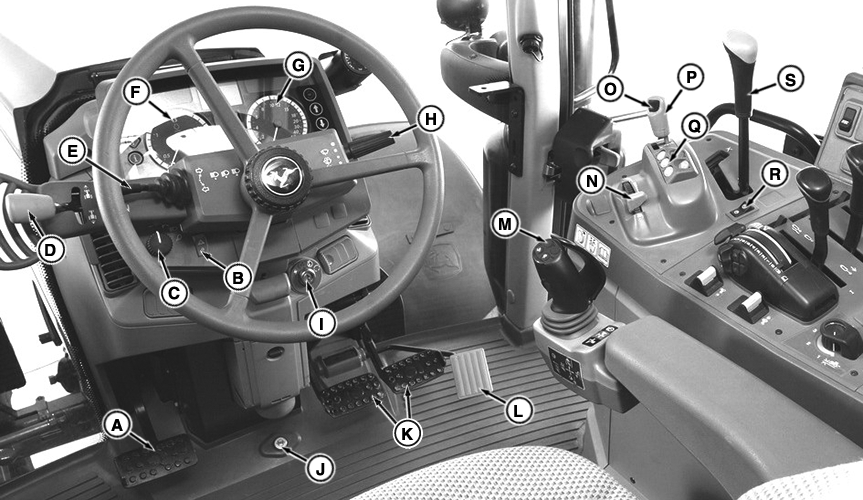

Vehicle Controls, CommandQuad™ PLUS Transmission - Foot Brake with Steering Brake (two Brake Pedals) Shown

A - Clutch Pedal

B - Hazard Warning Light Switch

C - Light Switch

D - Reverse Drive Lever

E - Turn-Signal Lever

F - Revolution Counter (rpm)

G - Speedometer (km/h and mph)

H - Wiper Switch

I - Key Switch

J - Differential Lock¹

K - Foot Brake with Steering Brake (Two Brake Pedals)

L - Foot Throttle

M - Multi-Function Lever with Gear-Shift Buttons

N - Hand Throttle

O - Speed Wheel

P - Shift Lever

Q - Range Shift Unit

R - Start Gear Switch

S - Shift Lever for Park Lock

NOTE: The foot brake may or may not have a steering brake.

• With Steering Brake — Two Brake Pedals
• Without Steering Brake — One Brake Pedal
