Come-Home Mode

LX234550-UN-04MAR15

If there is an electrical fault in the transmission, the tractor can possibly still be driven in come-home mode.

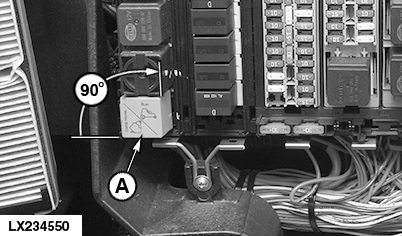

To do this, stop the engine, pull out connector (A), turn it 90° clockwise, and re-insert it as shown. Then restart the engine.

Refer also to fuses and relays (LCS) and (FRM) in the section “Service - As Required”.

NOTE: The following applies to tractors with PowrQuad™ PLUS or AutoQuad™ PLUS transmissions in come-home mode:

1. Engine speed is limited to 1500 rpm.
2. Only the first gear is available in each speed range.
3. The manual clutch is disabled.
4. Changing direction is possible only when the machine is stopped and the clutch pedal is pressed.

NOTE: The following applies to tractors with CommandQuad™ PLUS transmissions in come-home mode:

1. Engine speed is limited to 1500 rpm.
2. Only the third gear is available in each speed range.
3. The AutoClutch function is disabled.
4. Stop the tractor to switch between speed ranges.
5. Changing direction is possible only when the machine is stopped and the clutch pedal is pressed.

To start, proceed as follows:

1. Comply with instructions on the instrument panel.
2. Press the clutch pedal and hold it down.
3. Select the desired range.
4. Use the reverse drive lever to select direction of travel.
5. Start by releasing the clutch pedal.
