Check the Movement Inhibitor – CommandQuad™ Transmission

1. Move lever (A) to position (1) to engage the park lock.

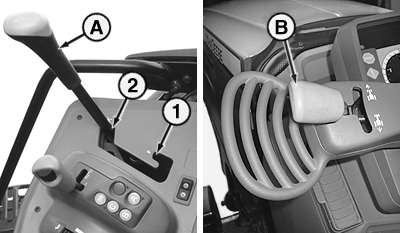

   LX315059-UN-04DEC17

   A - Park Lock Lever

   B - Reverse Drive Lever

   1 - Park Lock Engaged

   2 - Park Lock Disengaged

---




2. Move the reverse drive lever (B) to forward or reverse position.

3. Start the engine and wait 6-7 seconds. The N display must light up.

4. Engage the brake.

5. Move lever (A) to position (2) to disengage the park lock.

6. Release brake and actuate the accelerator pedal or hand throttle. The tractor must NOT start to move. If it does, contact your authorized dealer immediately.
