Front PTO — PTO Shield

TS276-UN-23AUG88

CAUTION: Remove protective cap (A) only when a PTO-driven implement is to be attached.

As soon as the implement is removed, re-install protective cap!

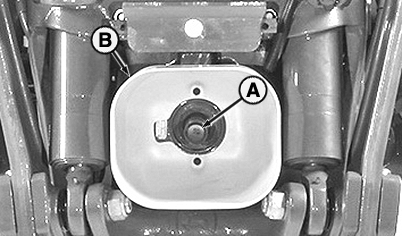

LX266964-UN-31AUG16

Protective Cap and PTO Shield

CAUTION: Operate the PTO shaft only if there is a PTO shield (B). Switch off the PTO before raising the implement.

CAUTION: Before using the PTO, the maximum permissible angle of articulation on the u.j. shaft must be determined. During operation, there must be no contact between the PTO guard and the u.j. shaft.

When connecting the PTO, wear gloves.
