Access to the Battery - On Tractors with Horizontal Exhaust System

The battery is installed underneath the horizontal exhaust system.

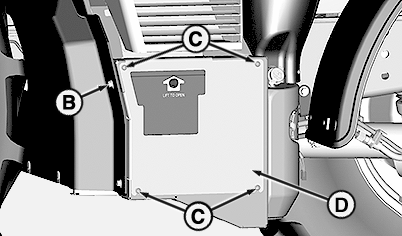

Open the flap and, if necessary, remove cover (D). To do so, remove attaching screws (B) and (C).

LX267020-UN-27FEB17

Cab with Horizontal Exhaust System Shown
