Fuses and Relays under the Horizontal Exhaust System

General Information

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than specified on the arrangement diagram.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

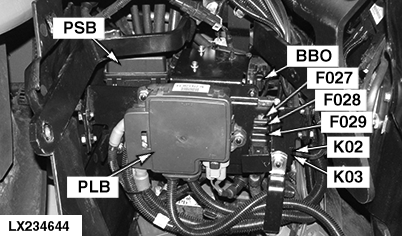

The fuses and relays of the following circuits are located under the exhaust system.

LX234644-UN-02APR15

• Power Link Box (PLB)

• Power Socket Box (PSB)

• Battery Brake Off (BBO)

• F027, F028 and F029, Fuses for Engine Control Unit

• K002 Starter Relay 1

• K003 Starter Relay 2

Remove attaching screws (B) and (C) and remove cover (D).

LX267020-UN-27FEB17

Remove the cover that conceals the fuses and relays.

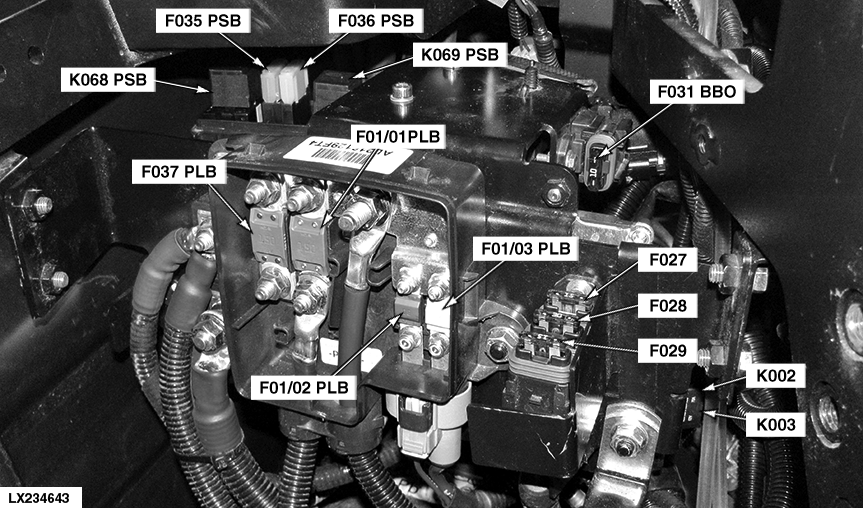

Fuses and relays

LX234643-UN-02APR15

Fuse no.	Capacity (amps)	Consumer	Fuse no.	Capacity (amps)	Consumer
F01/01 PLB	150 A	Power supply of fuse and relay box (LCS)	F035 PSB	60 A	Fuse for implement sockets (power supply to components)
F01/02 PLB	30 A	Engine control unit	F036 PSB	30 A	Fuse for implement sockets (power supply to implement control units)
F01/03 PLB	30 A	Starter Motor Relay	F027	15 A	Engine Control Unit Fuse
F037 PLB	150 A	Main Fuse	F028	30 A	Engine Control Unit Fuse
F031 BBO	10 A	Fuse for Battery Power Supply	F029	15 A	Engine Control Unit Fuse
Relay no.	Rating (amps)	Consumer	Relay no.	Rating (amps)	Consumer
K002	70 A	Starter Relay 1	K068 PSB	70 A	Relay for Power Supply to Implements (Power Supply to Components)
K003	70 A	Starter Relay 2	K069 PSB	20/40 A	Relay for Power Supply to Implements (Power Supply to Implement Control Units)
