Coolant Heater

CAUTION: Tripping hazard resulting in serious injury.

Obstacles in the area of the access step lead to tripping and thus to falling off the machine.

Remove all obstacles before getting on or off. These include in particular compressed-air hose, electrical lines of coolant heater, and ground fault circuit interrupter (GFCI).

IMPORTANT: Observe the electrical voltage of the local power mains.

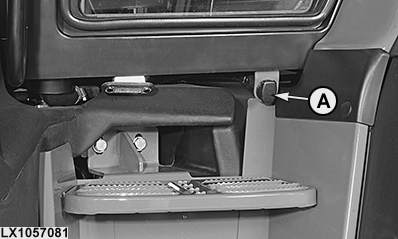

The coolant heater needs to be suitable for the regional power grid. Depending on the coolant heater, an operating voltage of either 230 V or 110 V is permissible; never for both. Connector (A) allows only the connection to the appropriate power grid.

LX1057081-UN-16JUL13

NOTE: If equipped, the transmission oil preheater and charge pump preheater are also operated by means of connector (A).

At an ambient temperature of -15 °C (5 °F), the heating process takes about 2 hours. Extend the heating period if ambient temperature is lower.
