Change Wheel Weights Safely

CAUTION: Have the mounting of wheel weights performed by a dealer authorized by John Deere. Improper handling may result in personal injury.

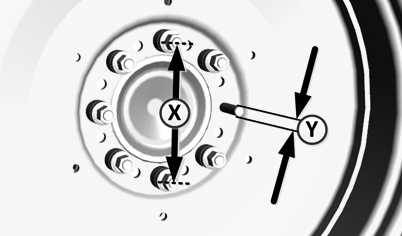

IMPORTANT: Hardware torques depend on the bolt circle diameter (X) and thread size (Y).

Find torques in the table.

LX299248-UN-26JUL17

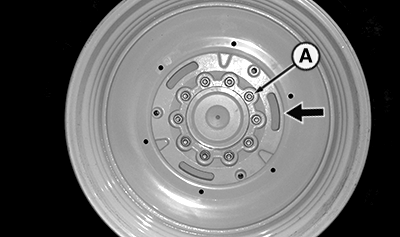

Mounting screws (A), basic weight to wheel

LX267012-UN-14DEC16

Basic Weight Shown with a Diameter () of 335 mm

Hardware Torque, Basic Weight to Wheel
335 mm, M22 x 1,5 ..............	600 N·m (445 lb-ft)
275 mm, M20 x 1,5 ..............	500 N·m (370 lb-ft)
203 mm, M20 x 1,5 ..............	500 N·m (370 lb-ft)

IMPORTANT: Retighten mounting screws (A) of the basic weight after 3 hours of operation and then again after 10 hours of operation.

Thereafter, check mounting screws (A) at the same interval as the wheel bolts.

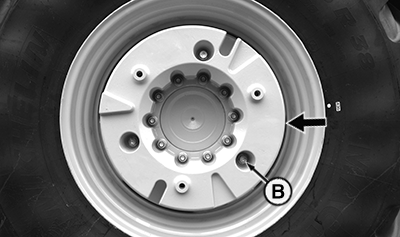

Mounting screws (B), wheel weight to basic weight or to wheel weight

LX267013-UN-14DEC16

Wheel Weight Shown with a Diameter () of 335 mm

Hardware Torque, Wheel Weight
335 mm, M20 x 1,5 ..............	500 N·m (370 lb-ft)
275 mm, M20 x 1,5 ..............	500 N·m (370 lb-ft)
203 mm, M20 x 1,5 ..............	500 N·m (370 lb-ft)

IMPORTANT: Check the mounting screws for each wheel weight once after 100 operating hours.
